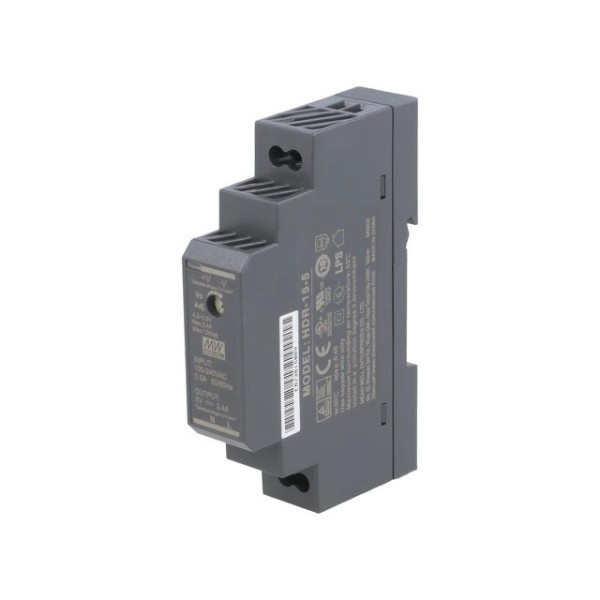

Mean Well HDR-15-5 - DIN Rail Power Supply - 5V 2.4A

This power supply is very suitable for powering, for example, a Raspberry Pi or Arduino. In addition, this power supply is specially made to be placed on a DIN rail, so that this module can easily be placed in, for example, a fuse box.

Specifications:

• Input voltage: 85-264V AC or 120-370V DC
• Output voltage: 5V DC
• Maximum output current: 2.4A
• Compatible DIN rail type: EN60715 (TS35/7.5 and TS35/15)
• Protection against short circuit, overload and over voltage (on the output)

Connections:

• L (Phase wire, brown wire)
• N (Zero wire, light blue wire)
• -V (GND/ground/min of the 5V)
• +V (Plus of the 5V)

Package contents:

• 1x Mean Well HDR-15-5 DIN Rail Power Supply

Note: The power supply is enclosed in a plastic housing. All parts with ventilation holes must be kept clear such that the heat can be released.

Note: The power supply should not be placed in direct sunlight.
