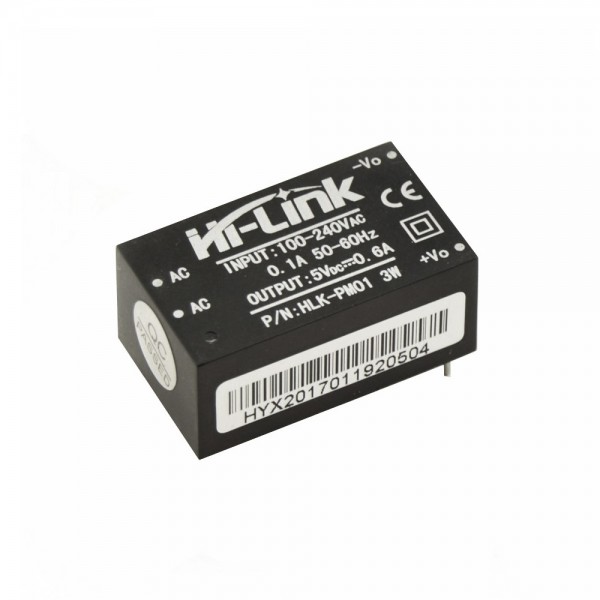

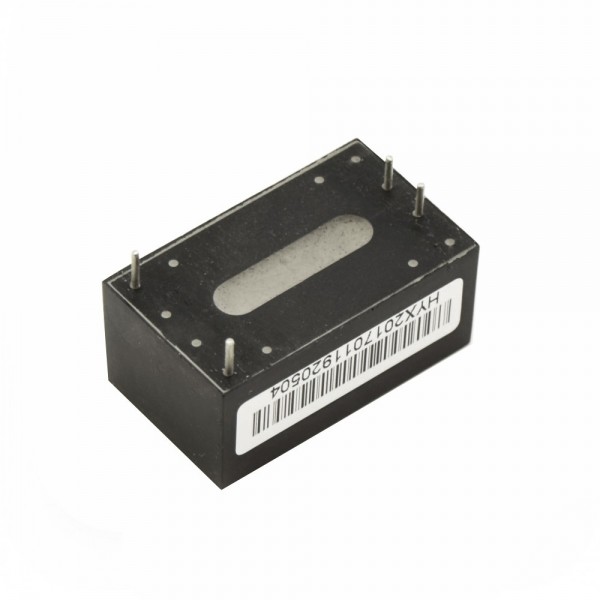

Hi-Link PCB Power supply - 5VDC 0.6A - HLK-PM01

This very compact Hi-Link power supply is made to solder on a printed circuit board and can convert 230V AC into 5V DC (up to 600mA).

Specifications:

• Input voltage (AC pins): 100 - 240V AC (recommended), 90 - 264V AC (maximum)
• Output voltage (+Vo and -Vo pins): 5V DC
• Maximum output current: 600mA (continuous)
• Voltage control:  ±0.2%
• Tax regulation:  ±0.5%
• Exit ripple: <50mV
• Dimensions: 34 x 20 x 15mm

For more information, see the product page: Ultra-compact power module HLK-PM01

See this page for a comprehensive test of this power supply: Performance test and review of mains to 5V 0.6A Hi-Link HLK-PM01

Note: The product uses a high alternating voltage which can be potentially dangerous!

Check the tab "Downloads" for more information and/or downloads.
