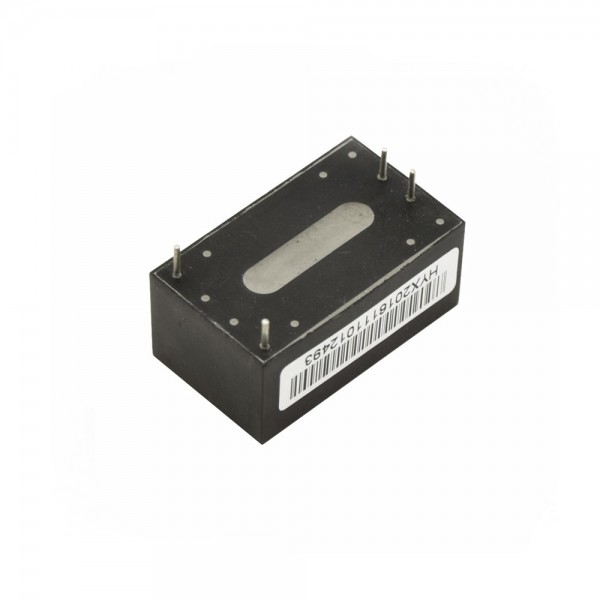

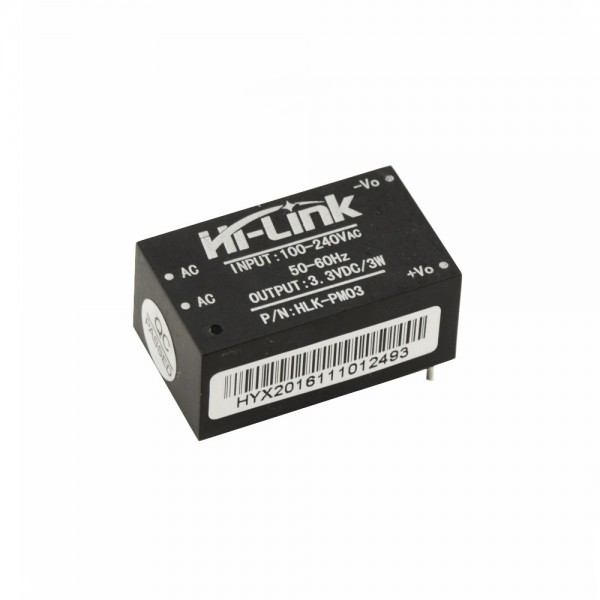

Hi-Link PCB Power supply - 3.3VDC 1A - HLK-PM03

This very compact power of Hi-Link is made on a circuit board soldering and can convert 230V AC to 3.3V DC (up to 1000mA).

Specifications:

• Input voltage (AC pins): 100 - 240V AC (recommended), 90 - 264V AC (maximum)
• Output Voltage (+Vo and -Vo pins): 3.3V DC
• Maximum output current: 1000mA (continuous)
• Voltage control:  ±0.2%
• Load regulation:  ±0.5%
• Exit ripple: <70mV
• Dimensions: 34 x 20 x 15mm

For more information, see the product page: Ultra-compact power module HLK-PM03

Note: The product uses a high alternating voltage which can be potentially dangerous!
