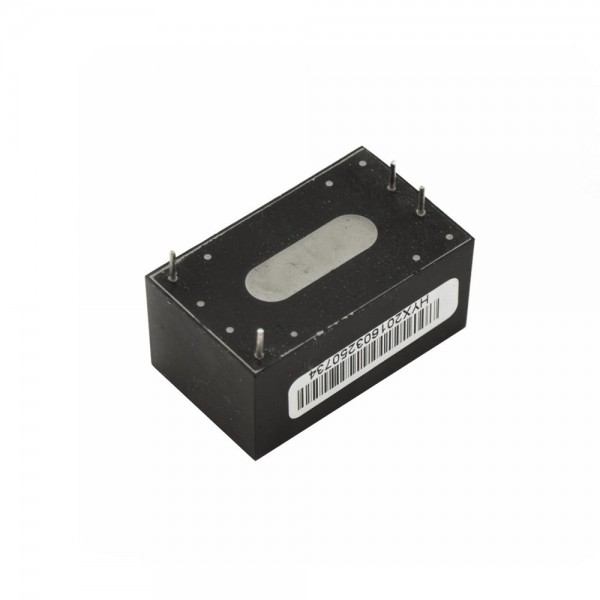

Hi-Link PCB Power supply - 3.3VDC 1.5A - HLK-5M03

This very compact Hi-Link power supply is made to solder on a printed circuit board and can convert 230V AC to 3.3V DC (up to 1500mA).

Specifications:

• Input voltage (AC pins): 100 - 240V AC (recommended), 90 - 264V AC (maximum)
• Output voltage (+Vo and -Vo pins): 3.3V DC
• Maximum output current: 1500mA (continuous)
• Voltage control:  ±0.2%
• Load regulation:  ±0.5%
• Exit ripple: <50mV
• Dimensions: 38 x 23 x 18 mm

For more information, see the product page: Ultra-compact power module HLK-5M03

Note: The product uses a high alternating voltage which can be potentially dangerous!
