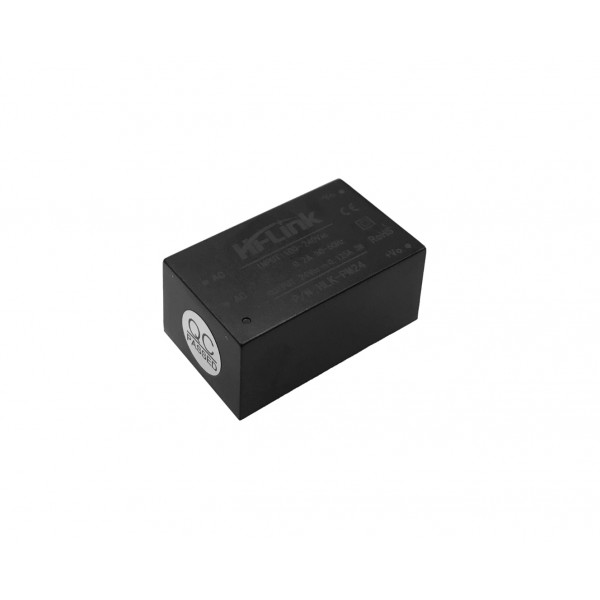

Hi-Link PCB Power supply - 24VDC 125mA - HLK-PM24

This very compact power supply from Hi-Link is made to be soldered on a printed circuit board and can convert mains voltage to a DC voltage.

Specifications:

• Input voltage (AC pins): 100 - 240V AC (recommended), 90 - 264V AC (maximum)
• Output voltage (+Vo and -Vo pins): 24V DC
• Maximum output current: 125mA (continuous)
• Voltage regulation: ±0.2%
• Load regulation: ±0.5%
• Output ripple: <70mV
• Operating temperature: -25 - 60°C
• Pin diameter: 0.8mm

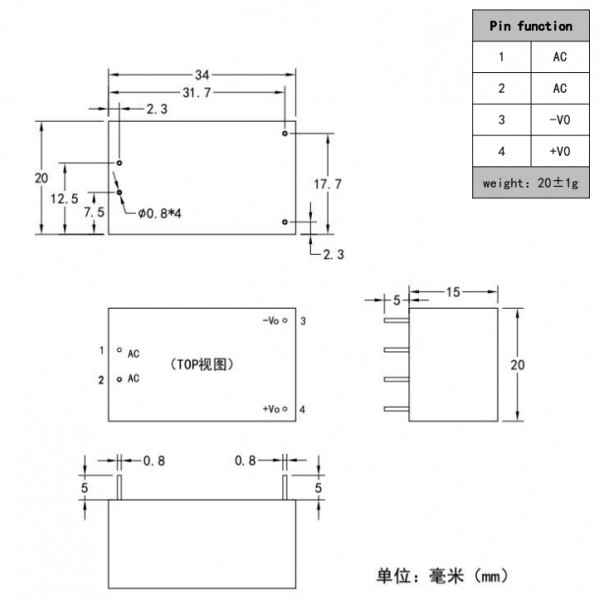

• Dimensions (without pins): 34 x 20 x 15mm

Package contents:

• 1x Hi-Link PCB Power supply - 24VDC 125mA - HLK-PM24

See the following page for more information: HLK-PM24.

Note: The product uses a high alternating voltage which can be potentially dangerous!
