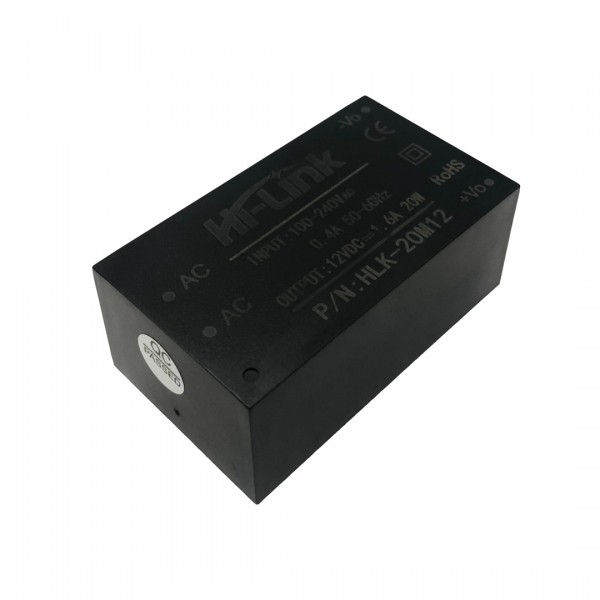

Hi-Link PCB Power supply - 12VDC 1.6A - HLK-20M12

This very compact power supply from Hi-Link is made to be soldered on a printed circuit board and can convert mains voltage to a DC voltage.

Specifications:

• Input voltage (AC pins): 85 - 265V AC (100 - 240V AC recommended)
• Output voltage (+Vo and -Vo pins): 12V DC
• Maximum output current: 1.6A (continuous)
• Voltage regulation: ±0.2%
• Load regulation: ±0.5%
• Output ripple: <150mV
• Operating temperature: -25 - 60°C
• Pin diameter: 1mm
• Dimensions (without pins): 57 x 33 x 22.5mm

Package contents:

• 1x Hi-Link PCB Power supply - 12VDC 1.6A - HLK-20M12

See the datasheet under de tab "Downloads" for more information.

Note: The product uses a high alternating voltage which can be potentially dangerous!

Check the tab "Downloads" for more information and/or downloads.
