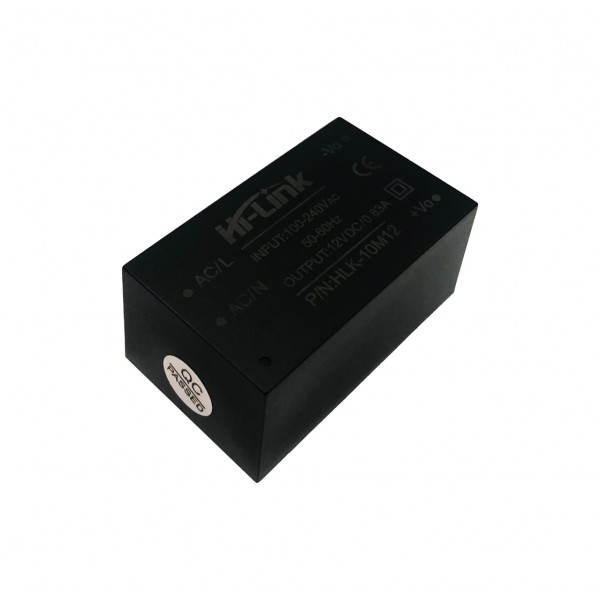

Hi-Link PCB Power supply - 12VDC 0.83A - HLK-10M12

This very compact power supply from Hi-Link is made to be soldered on a printed circuit board and can convert mains voltage to a DC voltage.

Specifications:

• Input voltage (AC pins): 85 - 265V AC (100 - 240V AC recommended)
• Output voltage (+Vo and -Vo pins): 12V DC
• Maximum output current: 0.83A (continuous)
• Voltage regulation: ±0.2%
• Load regulation: ±0.5%
• Output ripple: <120mV
• Operating temperature: -25 - 60°C
• Pin diameter: 0.8mm

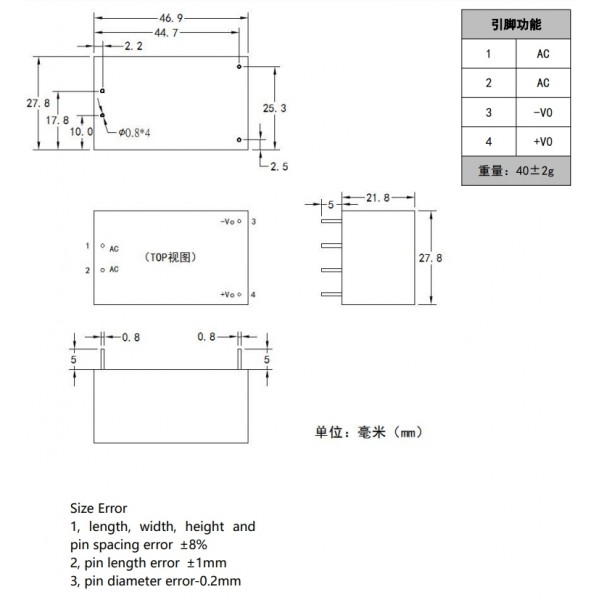

• Dimensions (without pins): 46.9 x 27.8 x 21.8mm

Package contents:

• 1x Hi-Link PCB Power supply - 12VDC 0.83A - HLK-10M12

See the datasheet under de tab "Downloads" for more information.

Note: The product uses a high alternating voltage which can be potentially dangerous!

Check the tab "Downloads" for more information and/or downloads.
