Name: Goobay 64570 Universal Power Supply - Adjustable 3-12V 2.25A - GOOBAY-64570
SKU: 006760
Price: 15 EUR
Availability: InStock

Goobay 64570 Universal Power Supply - Adjustable 3-12V 2.25A

New

Goobay 64570 Universal Power Supply - Adjustable 3-12V 2.25A

Availability: Directly available from warehouse in Eindhoven
SKU: 006760

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

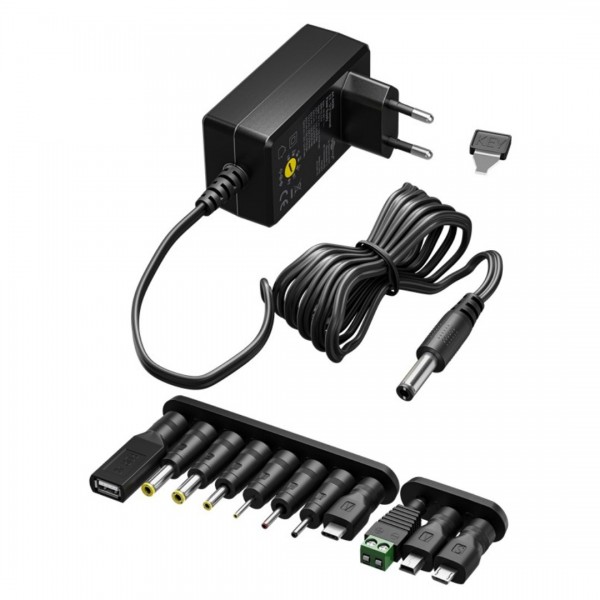

A simple universal power supply, with 11 different adapters including 7 DC jacks, some USB connectors and screw terminals. You can set this power supply to different voltages with a rotary switch.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Goobay 64570 Universal Power Supply - Adjustable 3-12V 2.25A

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006760_64570_Product-Data-Sheet.pdf

Manual: 006760_64570_Manual.pdf

Tags: Goobay 64570 Universal Power Supply - Adjustable 3-12V 2.25A , GOOBAY-64570 , 5V

Specifications

General
Brand	Goobay
Manufacturer model/SKU	64570
Norm conformity	RoHS CE
Features	Voltage converter Enclosure
General physical appearance
Main color	Black
Weight [g]	121
Dimension X [mm]	76
Dimension Y [mm]	44
Dimension Z [mm]	31
Water and dust protection	IP20
Voltage converter
Voltage converter type	Buck
Conversion	AC-DC
Isolated	Yes
Output voltage type	Variable (discrete)
Constant current function	No
Minimum input voltage [V AC]	100
Maximum input voltage [V AC]	240
Minimum output voltage [V DC]	3
Maximum output voltage [V DC]	12
Supported output voltages [V DC]	5 9 12 3 4.5 6 7.5
Maximum input current [A]	1.0
Maximum output current [A]	2.25
Maximum output power [W]	27 (@12V) 6.75 (@3V)
Safety features	Short circuit Overcurrent (output) Temperature
Connectors
Input voltage connector(s)	Socket Type C male (CEE 7/16)

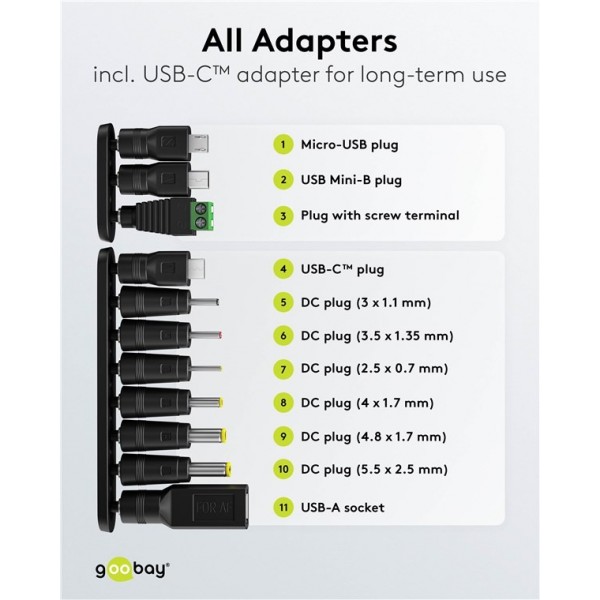

Output voltage connector(s)	Screw terminal USB-A female USB-C male Micro USB male Mini USB male DC-jack 5.5/2.1mm male DC-jack 4.0/1.7mm male DC-jack 3.5/1.35mm male DC-jack 5.5/2.5mm male DC-jack 3.0/1.1mm male DC-jack 2.5/0.7mm male DC-jack 4.8/1.7mm male
Wire/cable
Wire/cable length [m]	1.8
Enclosure
Material	Plastic (unknown material)
Package contents
Package contents	1x Power adapter 11x Adapter piece (see output voltage connectors)
