SupTronics X1202 UPS Battery Module - for Raspberry Pi 5

Availability: Directly available from warehouse in Eindhoven
SKU: 006767

Based on 0 review(s) - Write a review

€37.00

Ex Tax: €30.58

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

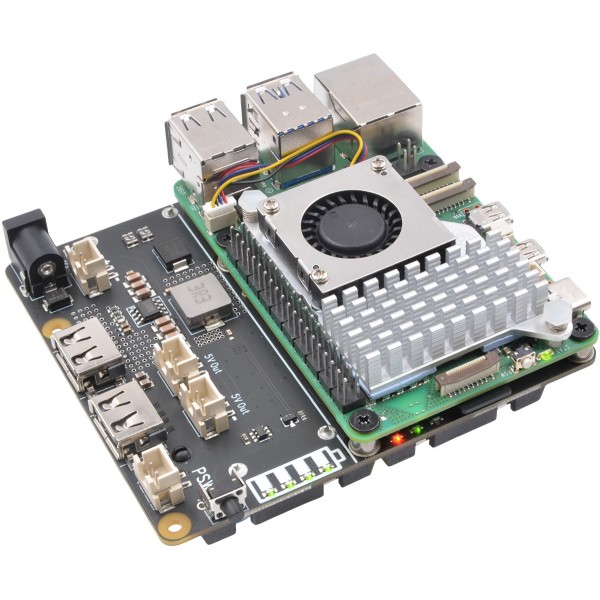

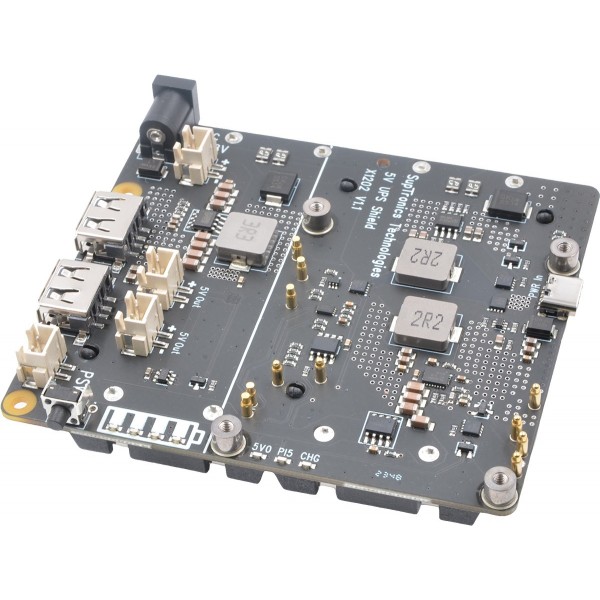

A UPS (uninterruptible power supply) module for the Raspberry Pi 5. We also sell a case for this module: X1202-C1 Metal Case

See the following page for an example with Home Assistant (/ESPHome): Home Assistant

See the following page for more information: Manufacturer page

Note: No Raspberry Pi is included.

Note: No batteries are included. These can be ordered separately: Batteries

Please login or register to review

Reviews Over SupTronics X1202 UPS Battery Module - for Raspberry Pi 5

Average Rating:

This product has 0 review(s) in total.

Tags: SupTronics X1202 UPS Battery Module - for Raspberry Pi 5 , X1202 , Power Banks and Battery Modules

Specifications

General
Brand	SupTronics
Manufacturer model/SKU	X1202
Model revision	V1.1
Features	Battery holder Battery charger Voltage converter Battery protection circuit

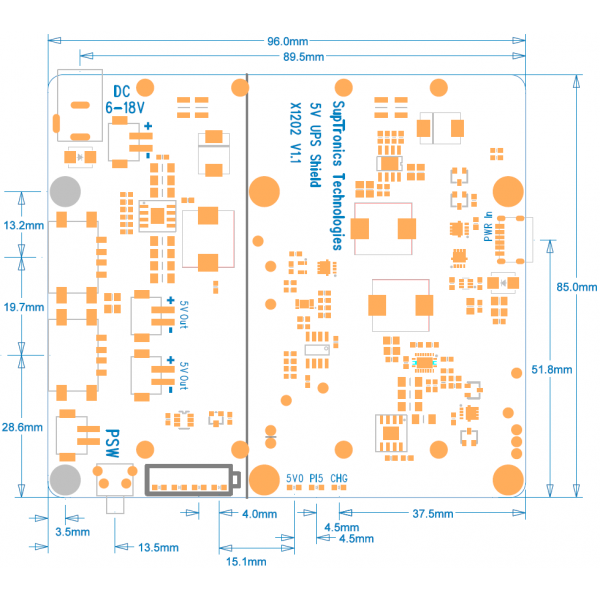

General physical appearance
Main color	Black
Weight [g]	80
Dimension X [mm]	96
Dimension Y [mm]	85
Mounting options	Screw thread Mounting hole(s)
Thread size	M2.5
Form factor	Module (general) Raspberry Pi 5 accessory
General electrical properties
Minimum supply voltage [V DC]	5 (via USB-C) 6 (via DC-Jack)
Maximum supply voltage [V DC]	18
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C Digital
Default I2C address	0x36
Voltage converter
Chip/SoC	RT6208 TPS61088
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Output voltage type	Fixed
Minimum input voltage [V DC]	6.0
Maximum input voltage [V DC]	18
Minimum output voltage [V DC]	5.1
Maximum output voltage [V DC]	5.1
Maximum output current [A]	5.0
Maximum output power [W]	25
Safety features	Temperature Short circuit Overcurrent (output)
Battery circuit
Battery charger chip/SoC	IP2312
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	3000
Adjustable charging current	No
Protection circuit	Yes
Safety features	Overcurrent Overvoltage Undervoltage Short circuit

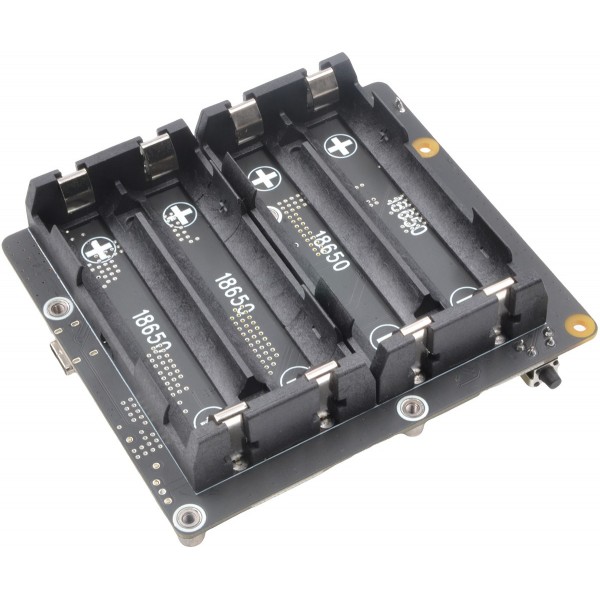

Battery holder
Suitable battery form factor	18650
Suitable anode shape	Flat top Button top
Suitable number of batteries	4
Circuit configuration	Parallel
Connectors
Power supply connector(s)	USB-C female DC-jack 5.5/2.1mm female JST-XH (compatible) male
IO-connector(s)	Pogo pin(s)
Output voltage connector(s)	Pogo pin(s) USB-A female JST-XH (compatible) male
Package contents
Package contents	1x UPS module 5x Bolt
