DFRobot Ambient Energy Harvesting Kit

DFRobot Ambient Energy Harvesting Kit
DFRobot Ambient Energy Harvesting Kit
DFRobot Ambient Energy Harvesting Kit
2-4 Weeks
DFRobot Ambient Energy Harvesting Kit
DFRobot Ambient Energy Harvesting Kit
DFRobot Ambient Energy Harvesting Kit
DFRobot Ambient Energy Harvesting Kit
  • Availability: 2-4 Weeks
  • SKU: 006676
Based on 0 review(s) - Write a review
€17.50
Ex Tax: €14.46
Add to Cart
Add to wishlist

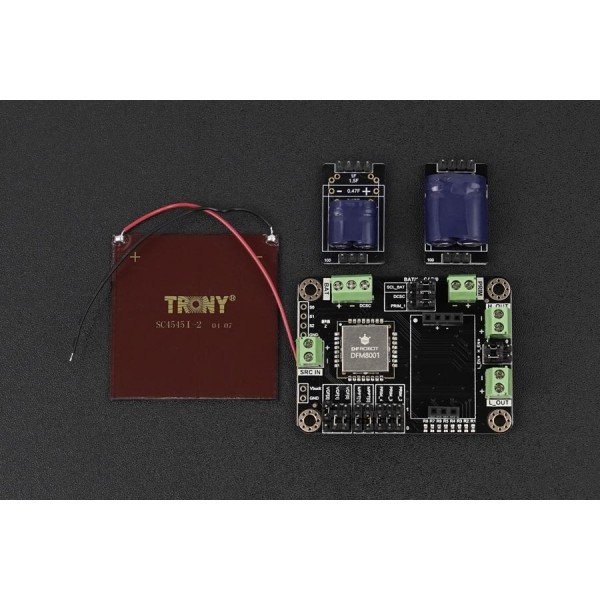

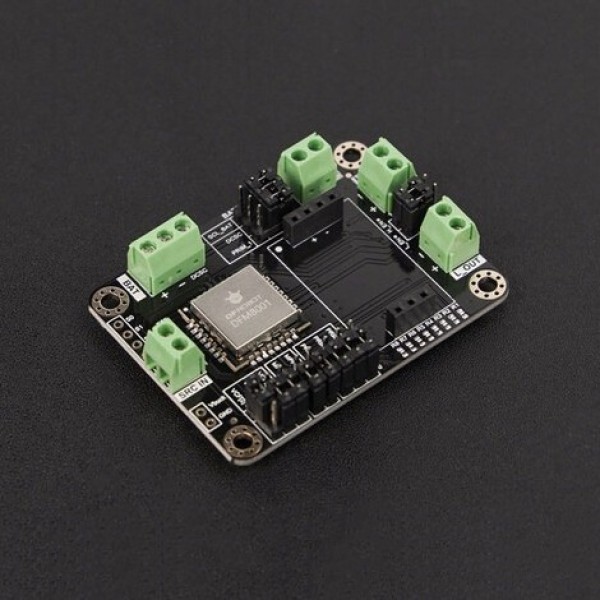

The Ambient Energy Harvesting Kit from DFRobot includes a solar panel, 2 super capacitors, and the controller board based on the DFM8001 module. This kit can be used to charge various battery types from low power energy sources, like the included solar panel, and use this energy to continuously power other devices such as sensors.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Ambient Energy Harvesting Kit

This product has 0 review(s) in total.

Tags: BMS and Chargers , Solar Chargers , DFRobot Ambient Energy Harvesting Kit , 006676 , DFRobot , KIT0197 , Battery charger , Voltage converter , Solar panel , MPPT , Digital

Specifications

General
Brand DFRobot
Manufacturer model/SKU KIT0197
Features MPPT
Solar panel
Battery charger
Voltage converter
General physical appearance
Main color Black
Weight [g] 18
Dimension X [mm] 57
Dimension Y [mm] 42
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 0.15
Maximum supply voltage [V DC] 5
IO-pin output voltage [V] Equal to battery voltage
Communication
Hardware interface(s) Digital
Solar panel
Cell type Amorphous silicon
Voltage converter
Chip/SoC DFM8001
Voltage converter type Linear regulator/LDO
Conversion DC-DC
Isolated No
Output voltage type Variable (discrete)
Minimum output voltage [V DC] 1.2
(L_OUT)
1.8
(H_OUT)
Maximum output voltage [V DC] 3.3
(H_OUT)
1.8
(L_OUT)
Supported output voltages [V DC] 1.2
1.8
2.5
3.3
Maximum output current [A] 0.08
0.02
(L_OUT)
0.08
(H_OUT)
Battery circuit
Battery charger chip/SoC DFM8001
Supported battery chemistry Li-Po
Ni-MH
Li-ion
LiFePO4
Maximum charging voltage [V] 4.5
(adjustable)
Maximum charging current [mA] 100
Adjustable charging current No
Protection circuit Yes
Safety features Overvoltage
Undervoltage
Undervoltage detection (UVP) [V] Adjustable
(2.7 - 4.5V)
Overvoltage detection (OVP) [V] Adjustable
(2.2 - 3.6V)
Connectors
Power supply connector(s) Screw terminal
IO-connector(s) Through hole solder pin(s) (2.54mm)
Battery connector(s) Screw terminal
Pin header female (2.54mm)
Output voltage connector(s) Screw terminal
Package contents
Package contents 1x DFRobot Energy Harvesting Evaluation Board
13x Jumper 2p
1x Solar panel
1x 0.22F super capacitor
1x 1.5F super capacitor
