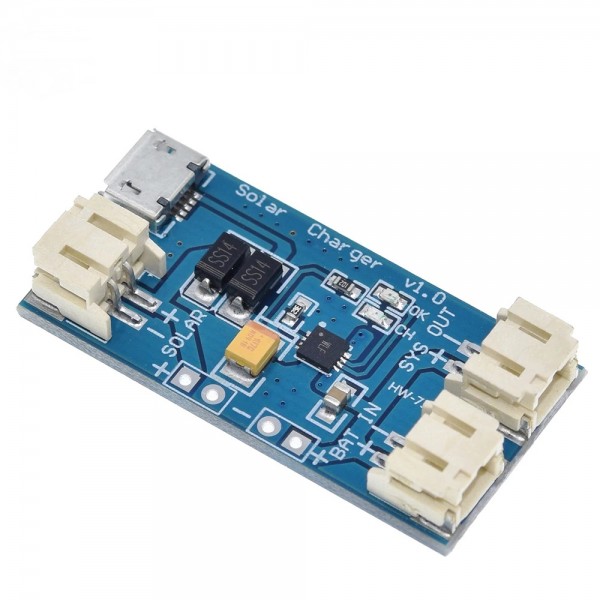

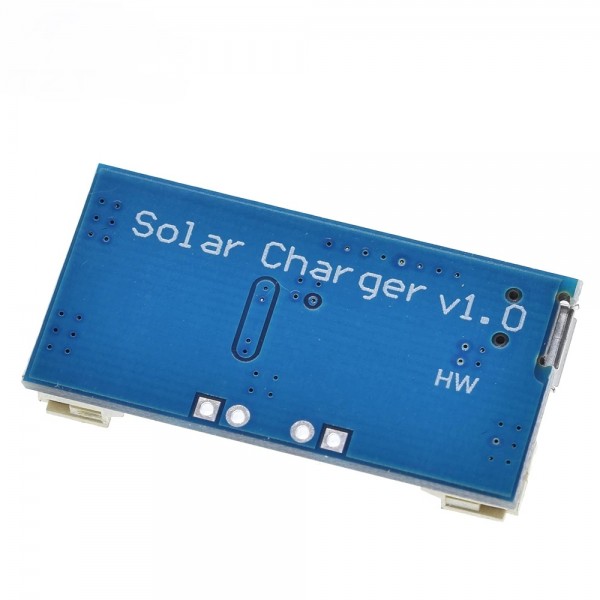

CN3065 Li-ion Solar Charger 500mA

This solar charger is based on the CN3065 chipset. With this module it is possible to connect a solar panel and a Li-ion or Li-Po battery to your project. The solar panel can charge the battery and power the system. A micro USB cable can also be connected to charge the battery (micro USB cable not included).

Specifications:

• Chipset: CN3065
• Solar panel input: 4.4V-6V
• Charging voltage: 4.2V ± 1%
• Maximum charging current: 500mA
• Interface: 2-pin JST-PH connector
• Battery indication LED
• Dimensions PCB: 40mm x 20mm

Note: This module does not have a battery protection circuit, it is recommended to use one!

Note: Before connecting, check that the polarity is correct and change the polarity if necessary by interchanging the connecting pins.
