Li-ion/Li-Po Protection circuit - 1S

Li-ion/Li-Po Protection circuit - 1S
Li-ion/Li-Po Protection circuit - 1S
Li-ion/Li-Po Protection circuit - 1S
Li-ion/Li-Po Protection circuit - 1S
Li-ion/Li-Po Protection circuit - 1S
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 001107
€1.00
Ex Tax: €0.83

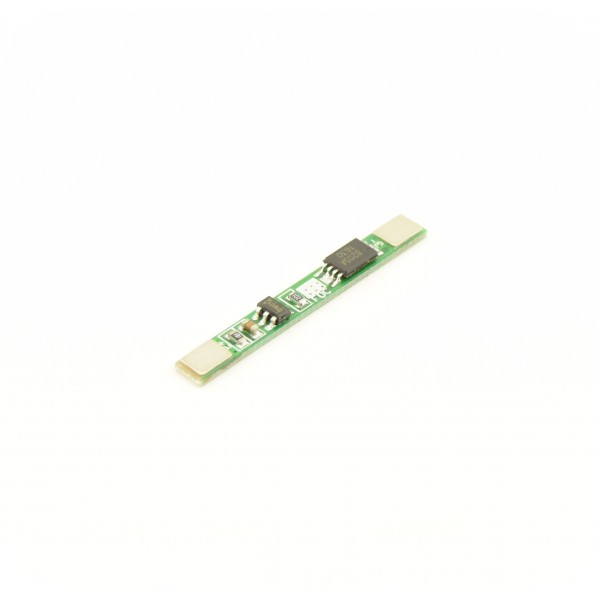

A compact li-ion/li-po protection circuit for 1 cell.

Specifications:

  • Voltage overcharge protection: 4.25 ± 0.05V
  • Voltage release protection: 4.23 ± 0.05V
  • Discharge protection: 2.45 ± 0.1V
  • Continuous current (max): 2A
  • Overcurrent protection: ~2.5A
  • Planes on PCB for spot welding of li-ion cell

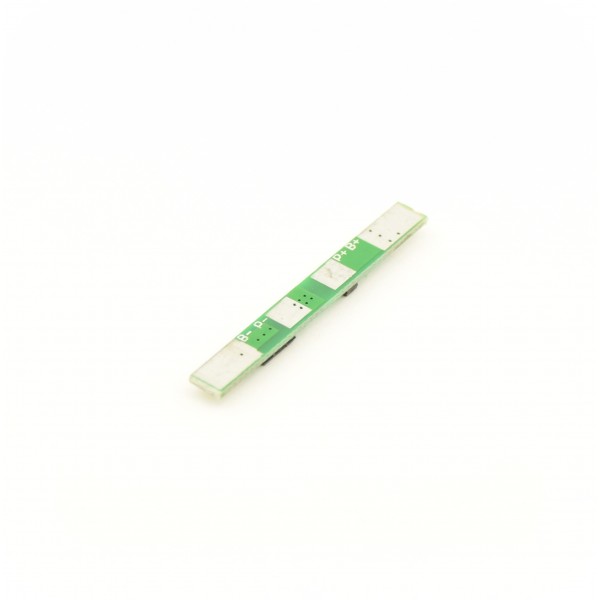

Pin description:

  • B+: Battery plus
  • B-: Battery min
  • P+: Output plus
  • P-: Output min

Note: The colour of the PCB may vary.
