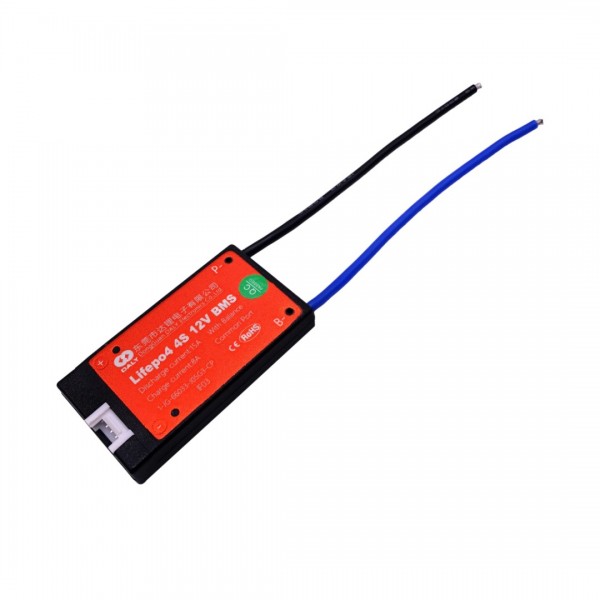

DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing

DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
On request
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing
  • Availability: On request
  • SKU: 005153
Based on 1 review(s) - Write a review
€8.00
Ex Tax: €6.61
Add to Cart
Add to wishlist

A Battery Management System (BMS) for a battery pack. With this circuit you can safely make a battery pack of 4 series LiFePO4 batteries (cells). The circuit protects the battery pack against short circuits, overvoltage and undervoltage. In addition, the circuit ensures that the batteries are charged evenly (balance function).

Caution: Making a LiFePO4 battery pack requires knowledge. Only make the package if you know what you are doing. Incorrectly connecting the batteries and the BMS can cause the batteries to catch fire, or even explode.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing

This product has 1 review(s) in total.

Tags: BMS and Chargers , BMS , DALY BMS LiFePO4 Protection Circuit - 4S 15A - with Balancing , 005153 , DALY , DL-J04G3-F4S15ATJ , Battery protection circuit , Enclosure

Specifications

General
Brand DALY
Manufacturer model/SKU DL-J04G3-F4S15ATJ
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 90
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Enclosure
Battery protection circuit
General physical appearance
Main color Red
Weight [g] 35
Dimension X [mm] 61
Dimension Y [mm] 35
Dimension Z [mm] 9
Form factor Module (general)
Battery circuit
Supported battery chemistry LiFePO4
Number of cells in series 4
Common port/separate port Common port
Maximum continous discharge current [A] 15
Maximum charging voltage [V] 14.6
Maximum charging current [mA] 8000
Protection circuit Yes
Safety features Overcurrent
Overvoltage
Undervoltage
Short circuit
Undervoltage detection (UVP) [V] 2.30
(±0.05)
Overdischarge release voltage [V] 2.7
(±0.05)
Overvoltage detection (OVP) [V] 3.65
(±0.05)
Overcharge release voltage [V] 3.55
(±0.05)
Discharge current protection [A] 60
(±10)
Charge current protection [A] 25
(±3)
Balance function Passive
Balans activation voltage [V] 3.525
Balance current [mA] 30
(±10)
Connectors
Battery connector(s) Loose wire
Package contents
Package contents 1x BMS
1x Balance cable
