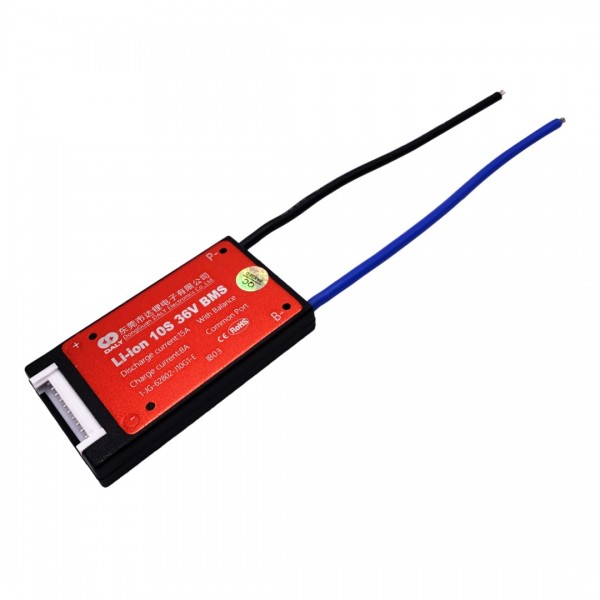

DALY BMS Li-ion-Li-Po Protection Circuit - 10S 15A - with Balancing

On request

DALY BMS Li-ion-Li-Po Protection Circuit - 10S 15A - with Balancing

Availability: On request
SKU: 005104

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

Not in stock

A Battery Management System (BMS) for a battery pack. With this circuit you can safely make a battery pack of 10 series Li-ion/Li-Po batteries (cells). The circuit protects the battery pack against short circuits, overvoltage and undervoltage. In addition, the circuit ensures that the batteries are charged evenly (balance function).

Caution: Making a Li-ion/Li-Po battery pack requires knowledge. Only make the package if you know what you are doing. Incorrectly connecting the batteries and the BMS can cause the batteries to catch fire, or even explode.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DALY BMS Li-ion-Li-Po Protection Circuit - 10S 15A - with Balancing

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005104_Data-Sheet-of-DL-J10G3-L10S15ATJ-BMS-circuits.pdf

Tags: DALY BMS Li-ion-Li-Po Protection Circuit - 10S 15A - with Balancing , DALYBMS10S15A , BMS

Specifications

General
Brand	DALY
Manufacturer model/SKU	DL-J10G3-L10S15ATJ
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Battery protection circuit Enclosure
General physical appearance
Main color	Red
Weight [g]	35
Dimension X [mm]	61
Dimension Y [mm]	35
Dimension Z [mm]	9
Form factor	Module (general)
Battery circuit
Supported battery chemistry	Li-ion Li-Po
Number of cells in series	10
Common port/separate port	Common port
Maximum continous discharge current [A]	15
Maximum charging voltage [V]	42.0
Maximum charging current [mA]	8000
Protection circuit	Yes
Safety features	Short circuit Overvoltage Overcurrent Undervoltage
Undervoltage detection (UVP) [V]	2.70 (±0.05)
Overdischarge release voltage [V]	3.0 (±0.05)
Overvoltage detection (OVP) [V]	4.25 (±0.05)
Overcharge release voltage [V]	4.15 (±0.05)
Discharge current protection [A]	50 (±5)
Charge current protection [A]	20 (±3)
Balance function	Passive
Balans activation voltage [V]	4.13
Balance current [mA]	30 (±10)
Connectors
Battery connector(s)	Loose wire
Package contents

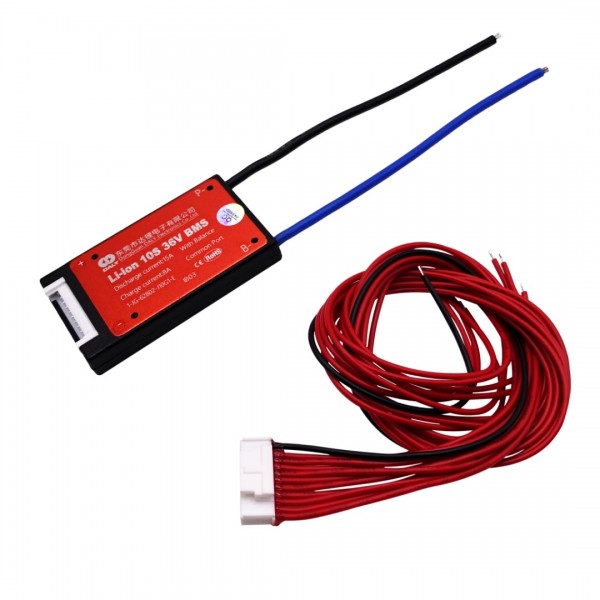

Package contents	1x BMS 1x Balance cable
