Name: PKCELL Li-Po Battery 3.7V 1200mAh - JST-PH - LP503562 - PKCELL-LP503562-1200MAH
SKU: 005879
Price: 6 EUR
Availability: InStock

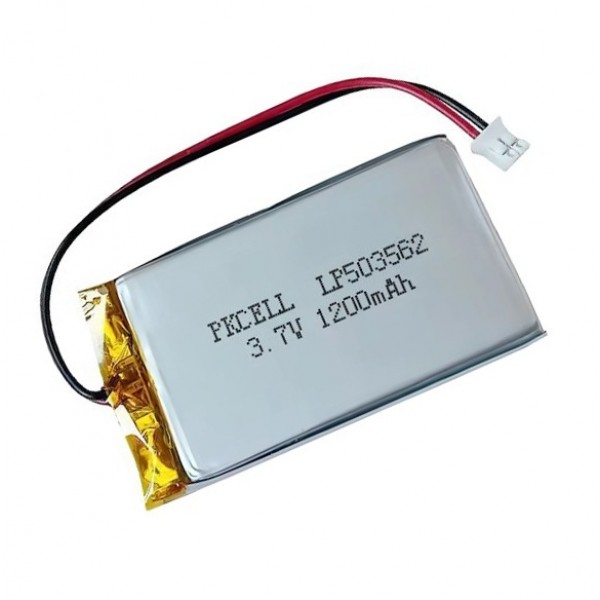

PKCELL Li-Po Battery 3.7V 1200mAh - JST-PH - LP503562

Availability: Directly available from warehouse in Eindhoven
SKU: 005879

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

10 or more €5.75

20 or more €5.50

50 or more €5.25

100 or more €5.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A Li-Po battery with built-in protection circuit from PKCELL that can be used in various applications. The following convenient adapter cables are available for this battery: Li-Po Adapter Cables

Note: Before connecting, always check that the polarity of the battery plug matches the polarity of the connector on the product to which the battery is connected. If necessary, swap the wires in the battery connector.

Note: This Li-Po battery is only shipped with parcel post because it is fragile and potentially dangerous if damaged.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over PKCELL Li-Po Battery 3.7V 1200mAh - JST-PH - LP503562

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005879_LP503562 1200mAh 3.7V data sheet.pdf

Tags: PKCELL Li-Po Battery 3.7V 1200mAh - JST-PH - LP503562 , PKCELL-LP503562-1200MAH , Li-Po

Specifications

General
Brand	PKCELL
Minimum operating temperature [°C]	0 (see datasheet)
Maximum operating temperature [°C]	45 (see datasheet)
Features	Battery protection circuit Battery
General physical appearance
Main color	Gray/silver
Weight [g]	24
Dimension X [mm]	65 (max)
Dimension Y [mm]	36 (max)
Dimension Z [mm]	5.3 (max)
Form factor	Individual component
Battery circuit
Protection circuit	Yes
Battery protection chip/SoC	S-8261DAA-M6T1U
Safety features	Short circuit Overvoltage Overcurrent Undervoltage
Undervoltage detection (UVP) [V]	3.00 (±0.05)
Overdischarge release voltage [V]	3.0
Overvoltage detection (OVP) [V]	4.28 (±0.025)
Overcharge release voltage [V]	4.08
Discharge current protection [A]	2 (±1)
Charge current protection [A]	2.5 (±1.2)
Battery
Chemistry	Li-Po
Rechargeable	Yes
Capacity [mAh]	1200
Minimum cell voltage [V]	3
Nominal cell voltage [V]	3.7
Maximum cell voltage [V]	4.2
Maximum continuous discharge current [A]	1.2
Maximum charging current [mA]	1200
Connectors
Battery connector(s)	JST-PH (compatible) female
Wire/cable
Wire/cable length [m]	0.1
Package contents
Package contents	1x Li-Po battery
