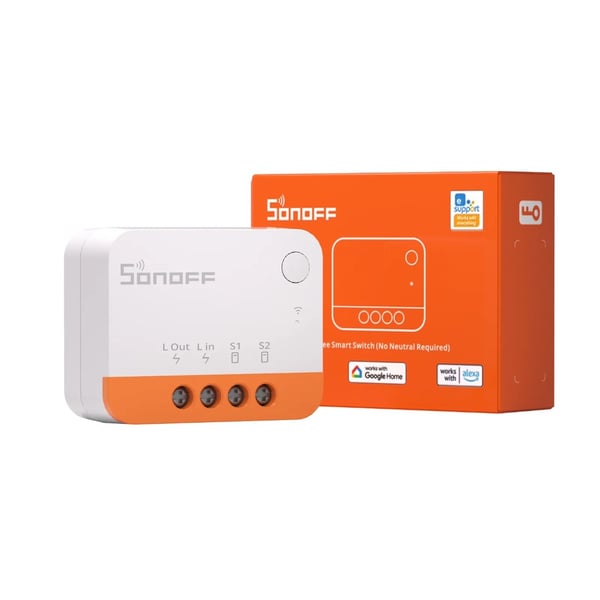

The Sonoff ZBMINI L2 is an extremely small ZigBee switch that fits easily into EU type junction boxes and does not require a neutral wire. It is also possible to use an existing (hotel) switch.

It can be controlled with Android or iOS with the eWeLink app. In addition, it is also compatible with other home automation platforms such as Home Assistant, Amazon Alexa, Google Assistant, IFTTT and Google Nest.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff ZBMINI-L2 Extreme - Zigbee Switch

This product has 3 review(s) in total.

Tags: Sonoff , Zigbee , Sonoff ZBMINI-L2 Extreme - Zigbee Switch , 004946 , Sonoff , ZBMINIL2 , Electric switch , Enclosure , Zigbee

Specifications

General
Brand Sonoff
Manufacturer model/SKU ZBMINIL2
Norm conformity CE
FCC
RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 40
Features Enclosure
Electric switch
General physical appearance
Main color White
Weight [g] 22
Dimension X [mm] 40
Dimension Y [mm] 32
Dimension Z [mm] 19
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC EFR32MG22
Zigbee frequency [GHz] 2.4
Zigbee device type(s) End device
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 240
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 6
(resistive load)
1.25
(LED)
Connectors
Power supply connector(s) Screw terminal
IO-connector(s) Screw terminal
Switch connector(s) Screw terminal
Minimum wire thickness [mm²] 1.0
Maximum wire thickness [mm²] 2.5
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC) V0
Package contents
Package contents 1x Sonoff ZBMINI-L2 Extreme
1x Quick start guide
