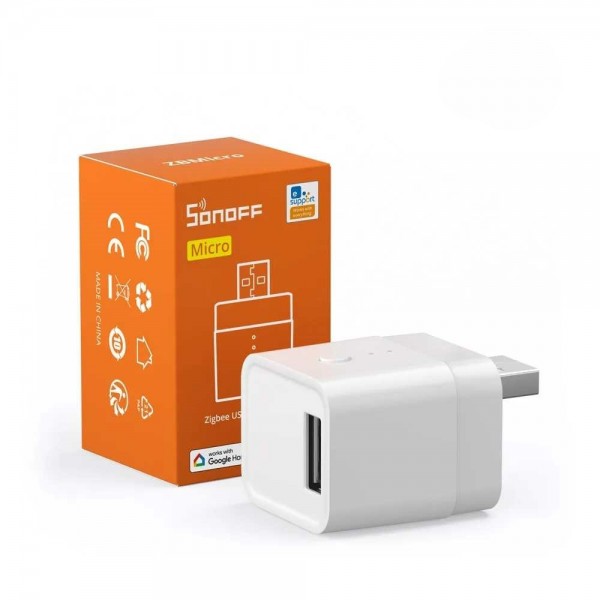

Sonoff ZBMicro - Smart USB Adapter - Zigbee

Availability: Directly available from warehouse in Eindhoven
SKU: 006373

Based on 0 review(s) - Write a review

€14.50

Ex Tax: €11.98

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

The Sonoff ZBMicro is a handy USB adapter that can be switched via Zigbee. This allows USB devices to be switched on and/or off remotely. USB 2.0 data is also passed from the input to the output and the adapter is compatible with higher voltages from, for example, fast chargers. The adapter can be controlled with Android or iOS with the eWeLink app. In addition to the Sonoff system, this sensor is also compatible with, for example, Home Assistant.

See the following page for more information: Manufacturer page

Note: A Zigbee bridge is required, the following are suitable: Sonoff ZB Bridge-P (in combination with eWeLink) or Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

Please login or register to review

Reviews Over Sonoff ZBMicro - Smart USB Adapter - Zigbee

Average Rating:

This product has 0 review(s) in total.

Tags: Sonoff ZBMicro - Smart USB Adapter - Zigbee , SONOFF-ZBMICRO , Zigbee

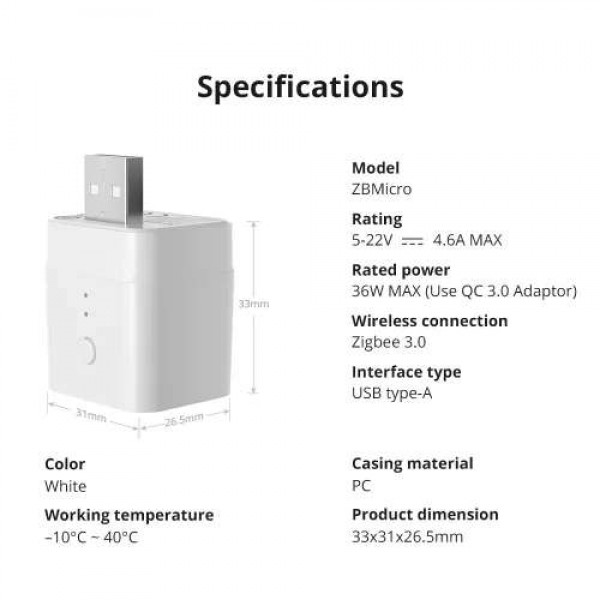

Specifications

General
Brand	Sonoff
Manufacturer model/SKU	ZBMICRO
Norm conformity	RoHS CE FCC
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	40
Features	Electric switch Enclosure
General physical appearance
Main color	White
Weight [g]	18
Dimension X [mm]	33
Dimension Y [mm]	31
Dimension Z [mm]	27
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	22
Communication
USB classification	USB 2.0
Wireless communication
Interface(s)	Zigbee
Zigbee chip/SoC	ERF32MG21
Zigbee frequency [GHz]	2.4
Zigbee device type(s)	Router
Switch
Switching method	Electrical
Switch type	MOSFET
Number of channels/gangs	1
Contact(s)	NO (normally open)
Maximum switching voltage [V DC]	22
Switching voltage equal to supply voltage	Yes
Maximum switching current per channel (resistive load) [A]	4.6
Connectors
Power supply connector(s)	USB-A male
IO-connector(s)	USB-A male USB-A female
Switch connector(s)	USB-A female
Zigbee antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x ZBMicro
