Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch

Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch
Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch
Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch
Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch
Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007654
Based on 0 review(s) - Write a review
€22.50
Ex Tax: €18.60
Add to Cart
Add to wishlist

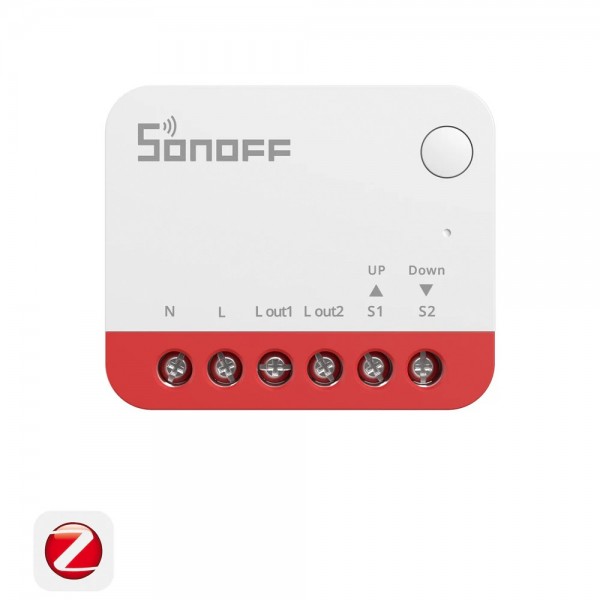

The Sonoff MINI-ZBRBS is an extremely small 2 channel smart Zigbee roller shutter switch that fits into most EU type junction boxes. It can be controlled with Android or iOS with the eWeLink app. In addition, it is also compatible with Home Assistant.

Note: A Zigbee bridge is required, for example: Sonoff ZB Bridge-P (in combination with eWeLink) or Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch

This product has 0 review(s) in total.

Tags: Sonoff , Zigbee , Sonoff MINI-ZBRBS - Zigbee Roller Shutter Switch , 007654 , Sonoff , MINI-ZBRBS , Electric switch , Enclosure , Zigbee

Specifications

General
Brand Sonoff
Manufacturer model/SKU MINI-ZBRBS
Norm conformity CE
RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 40
Features Enclosure
Electric switch
General physical appearance
Main color White
Weight [g] 25
Dimension X [mm] 40
Dimension Y [mm] 33
Dimension Z [mm] 17
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC ERF32MG21
Zigbee frequency [GHz] 2.4
Zigbee device type(s) Router
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 2
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 240
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 1
Connectors
Power supply connector(s) Screw terminal
IO-connector(s) Screw terminal
Switch connector(s) Screw terminal
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Sonoff MINI-ZBRBS
1x Quick start guide
