Sonoff ZBBridge-U - Wi-Fi-Zigbee Bridge Ultra
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007031
€79.25
Ex Tax: €65.50
Your shopping cart is empty!
With the Sonoff Zigbee Bridge Ultra you create a "bridge" between Sonoff Zigbee devices and Wi-Fi. It is also possible to let Zigbee modules from Sonoff work together with Wi-Fi modules from Sonoff. An example is that a Sonoff Zigbee Switch (SNZB-01) is pressed, the signal is sent to the Zigbee bridge, which then forwards this signal to a Wi-Fi Smart Switch and then, for example, turns on a lamp. It can be controlled with Android or iOS with the eWeLink app.
Note: No power adapter is included.
See the following page for more information: Manufacturer page
| General | |
| Brand | Sonoff |
| Manufacturer model/SKU | ZBBridge-U |
| Norm conformity | CE FCC RoHS |
| Minimum operating humidity [%R.H.] | 5 |
| Maximum operating humidity [%R.H.] | 95 |
| Minimum operating temperature [°C] | -10 |
| Maximum operating temperature [°C] | 40 |
| Features | Enclosure |
| General physical appearance | |
| Main color | White |
| Weight [g] | 96 |
| Dimension X [mm] | 82 |
| Dimension Y [mm] | 82 |
| Dimension Z [mm] | 28 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Communication | |
| Hardware interface(s) | Ethernet |
| Wireless communication | |
| Interface(s) | Wi-Fi Zigbee |
| Wi-Fi frequency [GHz] | 2.4 |
| Zigbee frequency [GHz] | 2.4 |
| Zigbee device type(s) | Coordinator |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | RJ45 female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Zigbee/Thread antenna connector | Built-in antenna |
| Enclosure | |
| Material | ABS Polycarbonate (PC) |
| Package contents | |

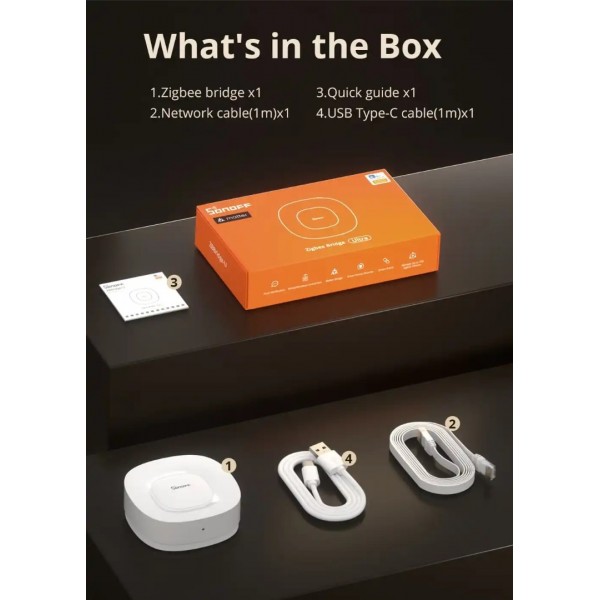

| Package contents | 1x ZBBridge-U 1x Ethernet cable - 1m 1x USB-A to USB-C cable - 1m 1x Quick start guide |
Some Sonoff devices have trouble connecting to a Wi-Fi network that runs on both 2.4GHz and 5GHz. However, there is a trick to work around this issue. The following steps can be followed for this:
Additionally, some Sonoff Wi-Fi products require 802.11b support. Consult the manual of your router or access point to learn if 802.11b is supported and how to set it up.
