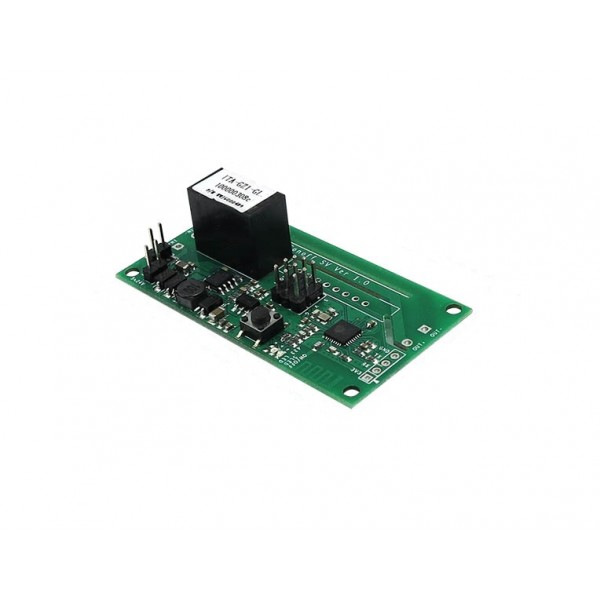

Sonoff SV - Wi-Fi Switch - ESP8266

Sonoff SV - Wi-Fi Switch - ESP8266
Sonoff SV - Wi-Fi Switch - ESP8266
Sonoff SV - Wi-Fi Switch - ESP8266
Sonoff SV - Wi-Fi Switch - ESP8266
Sonoff SV - Wi-Fi Switch - ESP8266
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002009
€8.50
Ex Tax: €7.02
10 or more €8.25
20 or more €8.00
50 or more €7.75
100 or more €7.50

The Sonoff SV is a very handy Wi-Fi switch with timer for IoT applications with a low supply voltage. It can be controlled with Android or iOS with the eWeLink app. This Wi-Fi switch is also compatible with Amazon Alexa, Google Assistant, IFTTT and Google Nest.

Specifications:

  • Voltage range default mode: 5-24VDC

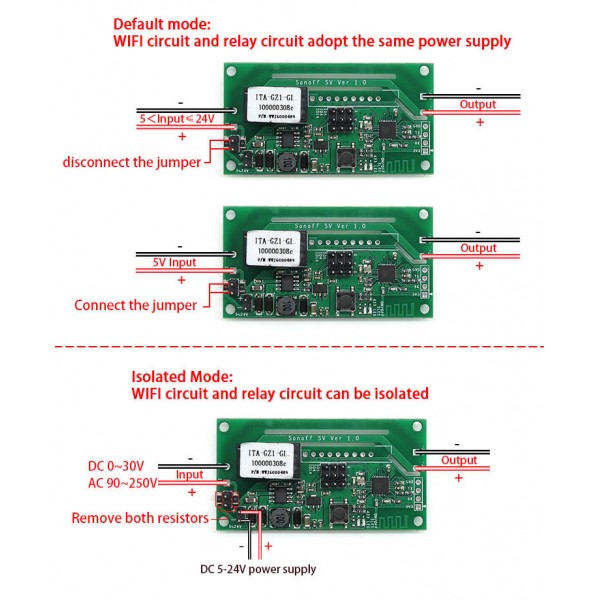

  • Voltage range isolated mode (see pictures): 0-30VDC or 90-250VAC
  • Max. current: 10A
  • Max. Power: 240W
  • Wi-Fi chip: ESP8266 (can be reprogrammed for your own application )
  • Wireless standard: 802.11 b/g/n
  • Security mechanism: WPA-PSK/WPA2-PSK
  • Dimensions: 65*34*16mm (l*w*h)
  • 4 M3 holes for mounting
  • Working temperature: 0ºC-40ºC

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Sonoff SV - Wi-Fi Switch - ESP8266

This product has 0 review(s) in total.

Product FAQ

Some Sonoff devices have trouble connecting to a Wi-Fi network that runs on both 2.4GHz and 5GHz. However, there is a trick to work around this issue. The following steps can be followed for this:

  1. Create a mobile hotspot with a smartphone. Use exactly the same name and password as for the 2.4 GHz network of your modem/router.
  2. Turn off the modem/router completely.
  3. Pair the Sonoff device with the mobile hotspot of the smartphone set up in step 1.
  4. Turn off the mobile hotspot from step 1 after the Sonoff device is successfully paired.
  5. Turn the modem/router back on.

Additionally, some Sonoff Wi-Fi products require 802.11b support. Consult the manual of your router or access point to learn if 802.11b is supported and how to set it up.
