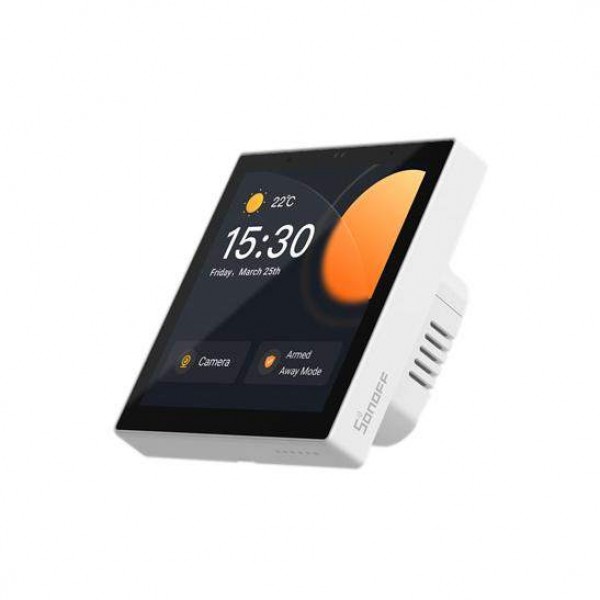

Sonoff NSPanel PRO - Wi-Fi - Zigbee - White

Availability: Directly available from warehouse in Eindhoven
SKU: 004922

Based on 0 review(s) - Write a review

€103.25

Ex Tax: €85.33

5 or more €101.25

10 or more €99.25

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A very convenient touchscreen control panel from Sonoff. It can be controlled via Wi-Fi with Android or iOS with the eWeLink app, and also functions as a ZigBee hub. In addition, it is also compatible with other home automation platforms such as Amazon Alexa and Google Home.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff NSPanel PRO - Wi-Fi - Zigbee - White

Average Rating:

This product has 0 review(s) in total.

Tags: Sonoff NSPanel PRO - Wi-Fi - Zigbee - White , SONOFF-NSPANEL86PW , Zigbee

Specifications

General
Brand	Sonoff
Manufacturer model/SKU	NSPanel86PW
Norm conformity	RoHS CE
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40

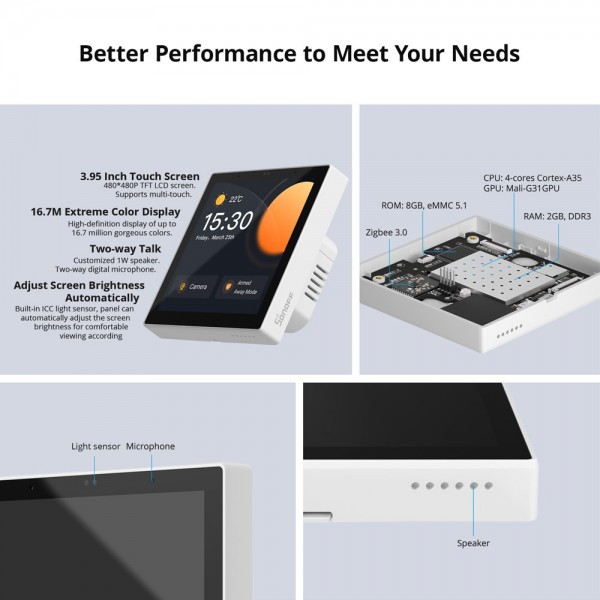

Features	Display Touchscreen Light sensor Enclosure Microphone Speaker/buzzer
General physical appearance
Main color	White
Weight [g]	180
Dimension X [mm]	86
Dimension Y [mm]	86
Dimension Z [mm]	40
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V AC]	100
Maximum supply voltage [V AC]	240
Wireless communication
Interface(s)	Wi-Fi Bluetooth Zigbee
Wi-Fi frequency [GHz]	2.4
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ERF32MG21
Zigbee frequency [GHz]	2.4
Display
Type	TFT
Screen diagonal [inch]	3.95
Number of pixels long side	480
Number of pixels short side	480
Pixel colors	RGB
Touchscreen
Touch type	Capacitive
Connectors

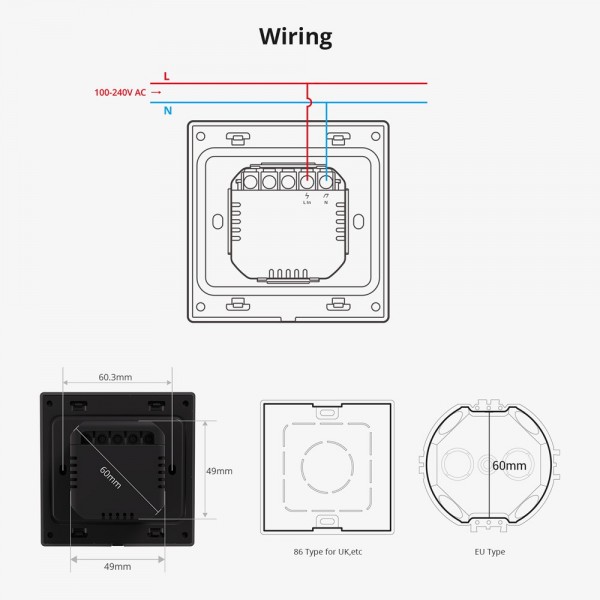

Power supply connector(s)	Screw terminal
Minimum wire thickness [mm²]	0.2
Maximum wire thickness [mm²]	2.08
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee/Thread antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x NSPanel Pro 2x Mounting bolt 1x Quick start guide
