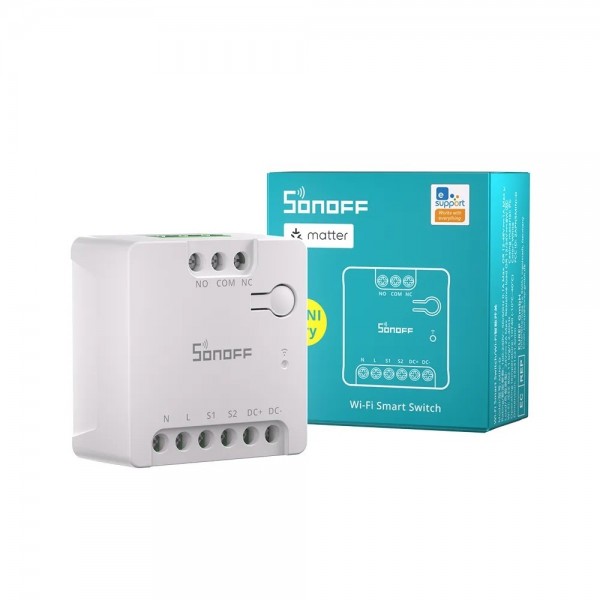

Sonoff MINI-D - Dry Contact Smart Switch - Wi-Fi - Matter

Sonoff MINI-D - Dry Contact Smart Switch - Wi-Fi - Matter
Sonoff MINI-D - Dry Contact Smart Switch - Wi-Fi - Matter
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007030
Based on 0 review(s) - Write a review
€14.25
Ex Tax: €11.78
Add to Cart
Add to wishlist

The Sonoff MINI-D is a versatile and smart Wi-Fi switch with a dry contact switch that also supports the Matter protocol. The module can be powered by both AC voltage and DC voltage (not simultaneously).

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff MINI-D - Dry Contact Smart Switch - Wi-Fi - Matter

This product has 0 review(s) in total.

Tags: Sonoff MINI-D - Dry Contact Smart Switch - Wi-Fi - Matter , SONOFF-MINI-D , Wi-Fi

Specifications

General
Brand Sonoff
Manufacturer model/SKU MINI-D
Norm conformity RoHS
CE
FCC
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 40
Features Electric switch
Enclosure
General physical appearance
Main color White
Weight [g] 36
Dimension X [mm] 43
Dimension Y [mm] 41
Dimension Z [mm] 22
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Minimum supply voltage [V DC] 12
Maximum supply voltage [V DC] 48
Wireless communication
Interface(s) Wi-Fi
Wi-Fi frequency [GHz] 2.4
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NC (normally closed)
NO (normally open)
Maximum switching voltage [V AC] 240
Maximum switching voltage [V DC] 24
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 2
(resistive load, for another load such as a motor maximum 8W)
Connectors
Power supply connector(s) Screw terminal
Switch connector(s) Screw terminal
Minimum wire thickness [mm²] 0.75
Maximum wire thickness [mm²] 1.5
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x MINI-D
1x Quick start guide

Product FAQ

My Sonoff device will not connect to the Wi-Fi network.

Some Sonoff devices have trouble connecting to a Wi-Fi network that runs on both 2.4GHz and 5GHz. However, there is a trick to work around this issue. The following steps can be followed for this:

  1. Create a mobile hotspot with a smartphone. Use exactly the same name and password as for the 2.4 GHz network of your modem/router.
  2. Turn off the modem/router completely.
  3. Pair the Sonoff device with the mobile hotspot of the smartphone set up in step 1.
  4. Turn off the mobile hotspot from step 1 after the Sonoff device is successfully paired.
  5. Turn the modem/router back on.

Additionally, some Sonoff Wi-Fi products require 802.11b support. Consult the manual of your router or access point to learn if 802.11b is supported and how to set it up.
