Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White

Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White
Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White
New
Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White
Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White
Sonoff M5-3C-80W SwitchMan - Wi-Fi Switch - Matter Compatible - 3 Channels - White
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007340
€22.00
Ex Tax: €18.18

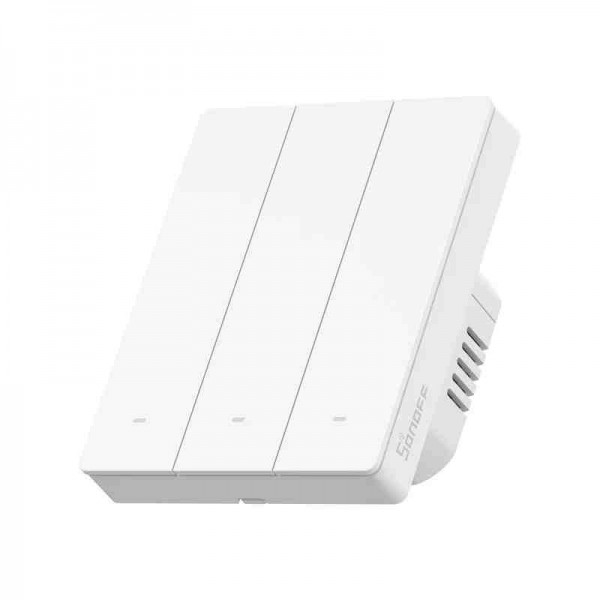

A smart Matter compatible Wi-Fi switch from Sonoff.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Specifications

General
Brand Sonoff
Manufacturer model/SKU M5-3C-80W
Norm conformity RoHS
CE
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 40
Features Electric switch
Enclosure
General physical appearance
Main color White
Weight [g] 142
Dimension X [mm] 86
Dimension Y [mm] 71
Dimension Z [mm] 42
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Wireless communication
Interface(s) Wi-Fi
Wi-Fi frequency [GHz] 2.4
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 3
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 240
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 2
(resistive)
0.45
(LED)
Maximum switching current (channels combined) [A] 6
Connectors
Power supply connector(s) Screw terminal
Switch connector(s) Screw terminal
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC) V0
CRS
Package contents
Package contents 1x Sonoff switch

Product FAQ

Some Sonoff devices have trouble connecting to a Wi-Fi network that runs on both 2.4GHz and 5GHz. However, there is a trick to work around this issue. The following steps can be followed for this:

  1. Create a mobile hotspot with a smartphone. Use exactly the same name and password as for the 2.4 GHz network of your modem/router.
  2. Turn off the modem/router completely.
  3. Pair the Sonoff device with the mobile hotspot of the smartphone set up in step 1.
  4. Turn off the mobile hotspot from step 1 after the Sonoff device is successfully paired.
  5. Turn the modem/router back on.

Additionally, some Sonoff Wi-Fi products require 802.11b support. Consult the manual of your router or access point to learn if 802.11b is supported and how to set it up.

If you have a question or problem regarding a product, please contact us by using one of the buttons below.
