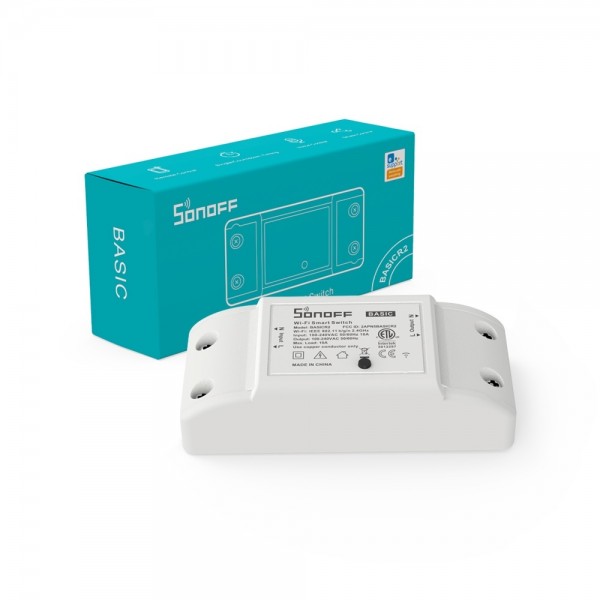

Sonoff Basic R2 - Wi-Fi Switch - ESP8266/ESP8285

The Sonoff Basic R2 is a very handy Wi-Fi switch with timer for IoT applications. It can be controlled with Android or iOS with the eWeLink app. This Wi-Fi switch is also compatible with Amazon Alexa, Google Assistant, IFTTT and Google Nest.

Specifications:

• Supply voltage: 100 - 240V AC (50/60Hz)
• Switching voltage: 100 - 240V AC (same as supply voltage)
• Maximum switching current per channel: 10A (resistive load)
• Maximum switching power per channel: 2200W (resistive load)
• Wi-Fi chip: ESP8266 or ESP8285 (can be reprogrammed for own purposes)
• Wireless standard: 802.11 b/g/n
• Security mechanism: WPA / WPA2
• Working temperature: -10 - 40ºC
• Dimensions: 88 x 39 x 24mm

Package contents:

• 1x Sonoff Basic R2
• 1x Screw set
• 1x Quick installation guide

See the following page for more information: Sonoff Basic R2 Manuals
