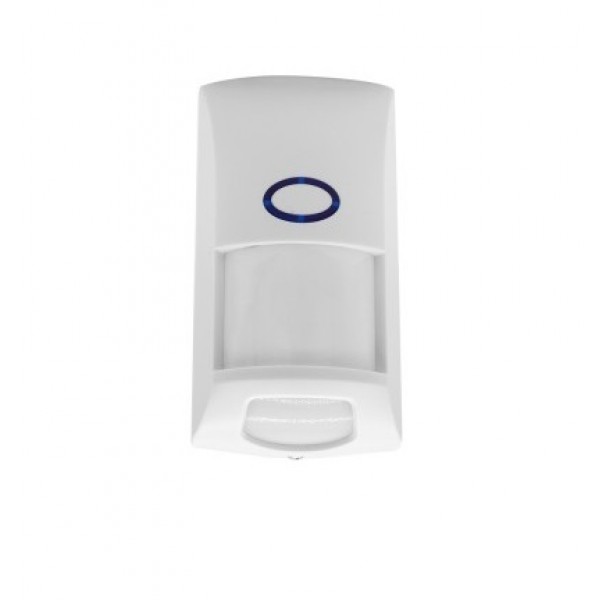

Sonoff PIR2 Compatible - PIR Motion Sensor - 433MHz

The motion sensor is compatible with the Sonoff PIR2 and detects human movements and then sends a 433MHz RF signal. This signal can then be captured with the Sonoff 433MHz RF-Wi-Fi Bridge R2. This way you can, for example, automatically turn on lights or trigger an alarm. Through the anti-pet mechanism, the sensor does not trigger on pets.

Specifications:

• Input voltage: 3V DC (Via double AAA batteries, these are not included!)
• Maximum transmission distance: 150m (straight line, without obstacles)
• Standby current: <9uA
• Maximum detection distance: ~12m
• Detection angle: ~110 degrees
• RF frequency: 433MHz
• Also works with other home automation systems via eg RFXCOM 433E or RFLink 433MHz
• Dimensions: 46*62*120mm (l*w*h)

Package Contents:

• 1x Motion sensor
• 1x Wall mount (adjustable at an angle)
• 2x Mounting screw
• 2x Plastic wall plug

See the following page to link the sensor to the Sonoff RF bridge: Sonoff 433 RF Bridge User Guide
