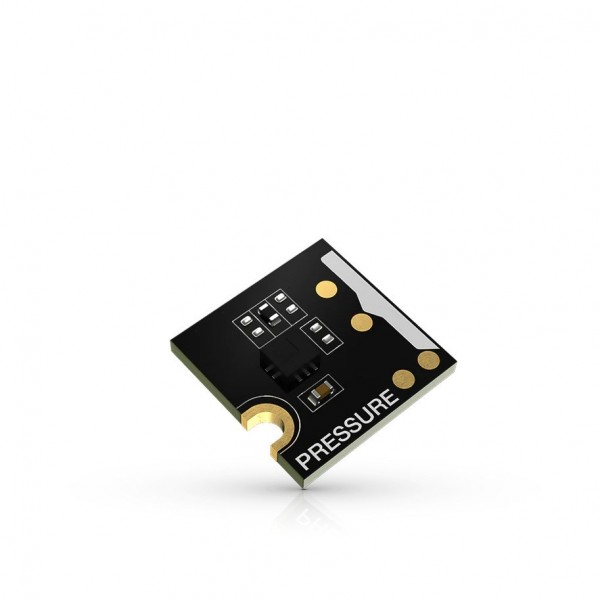

RAKwireless RAK1902 WisBlock Barometric Pressure Sensor - LPS22HB

2-4 Weeks

RAKwireless RAK1902 WisBlock Barometric Pressure Sensor - LPS22HB

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

Not in stock

Een barometric pressure sensor module from RAKwireless for the modular WisBlock system.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: RAKwireless RAK1902 WisBlock Barometric Pressure Sensor - LPS22HB , RAK-100010 , Pressure

General
Brand	RAKwireless
Manufacturer model/SKU	RAK1902/100010
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Temperature sensor Pressure sensor (gas/liquid)
General physical appearance
Main color	Black
Weight [g]	1

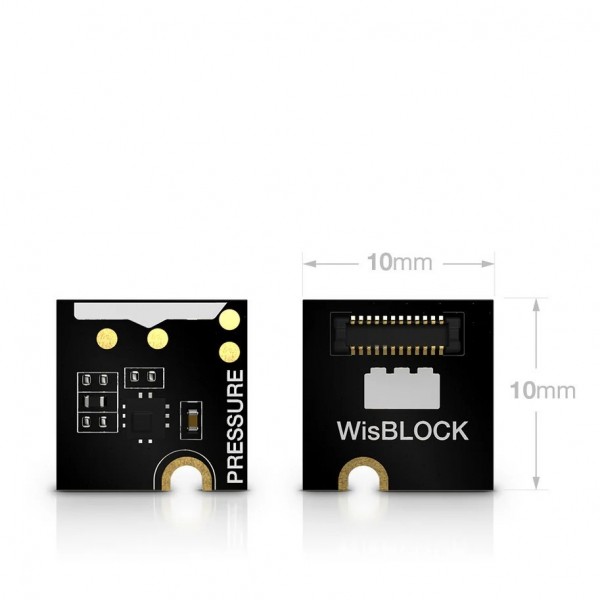

Dimension X [mm]	10
Dimension Y [mm]	10
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock Sensor Module
General electrical properties
Minimum supply voltage [V DC]	1.7
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	1.7
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x5C
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	None
Temperature sensor
Sensor (chip)	LPS22HB
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	85
Maximum resolution [bit]	16
Accuracy [±°C]	1.5 (0-65°C)
Pressure sensor
Sensor (chip)	LPS22HB
Suitable medium	Air
Minimum measuring range [hPa]	260
Maximum measuring range [hPa]	1260
Maximum resolution [bit]	24
Accuracy [±hPa]	0.1 (see datasheet)
Connectors
Power supply connector(s)	FBB04004 (WisBlock) 24p male
IO-connector(s)	FBB04004 (WisBlock) 24p male
Package contents
Package contents	1x RAK1902 WisBlock Barometer Pressure Sensor - LPS22HB
