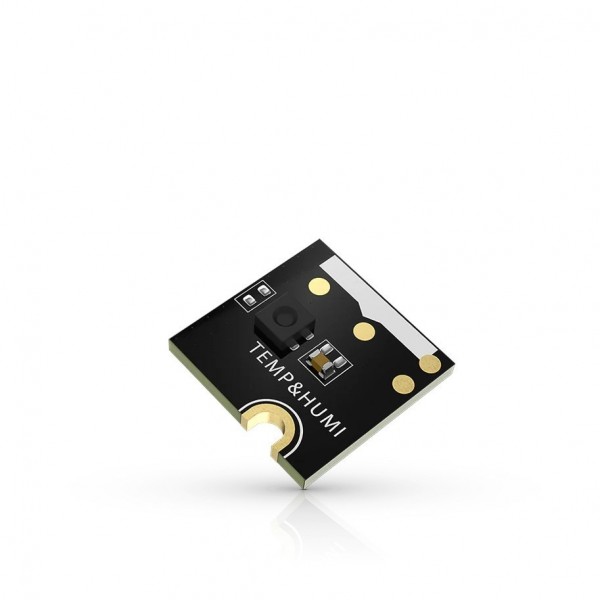

RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3

RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3
RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3
RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3
RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3
RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006614
€6.00
Ex Tax: €4.96

A sensor module from RAKwireless for the modular Wisblock system.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over RAKwireless RAK1901 WisBlock Temperature and Humidity Sensor - SHTC3

This product has 0 review(s) in total.

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK1901/100001
Features Temperature sensor
Humidity sensor
General physical appearance
Main color Black
Weight [g] 1

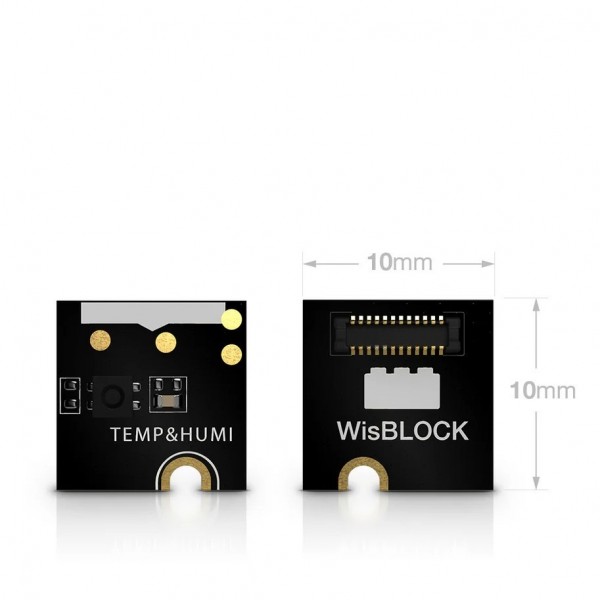

Dimension X [mm] 10
Dimension Y [mm] 10
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor Module (general)
WisBlock Sensor Module
General electrical properties
Minimum supply voltage [V DC] 1.6
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 1.6
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x70
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] None
Temperature sensor
Sensor (chip) SHTC3
Minimum measuring range [°C] -40
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.01
Accuracy [±°C] 0.2
(see datasheet)
Humidity sensor
Sensor (chip) SHTC3
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Smallest resolution [%R.H.] 0.01
Accuracy [±%] 2.0
(20-80%, see datasheet)
Connectors
Power supply connector(s) FBB04004 (WisBlock) 24p male
IO-connector(s) FBB04004 (WisBlock) 24p male
Package contents
Package contents 1x RAK1901 Wisblock Temperature and Humidity Sensor
