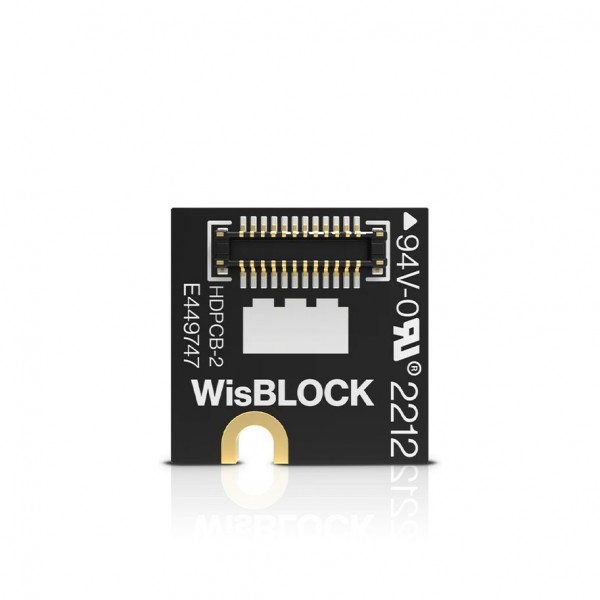

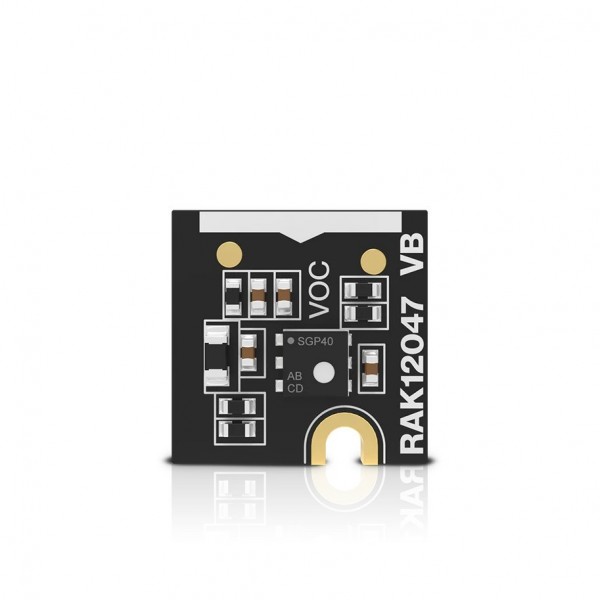

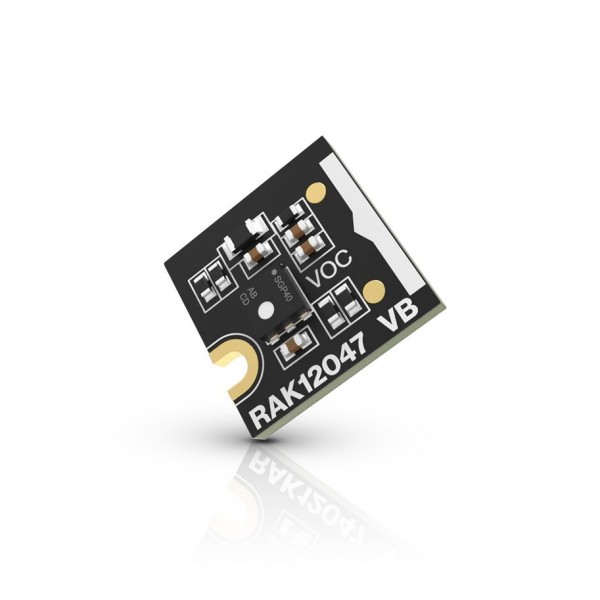

RAKwireless RAK12047 WisBlock VOC Sensor - SGP40
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006616
€11.25
Ex Tax: €9.30
Your shopping cart is empty!
A VOC sensor module from RAKwireless for the modular WisBlock system.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | RAKwireless |
| Manufacturer model/SKU | RAK12047/100096 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 70 |
| Features | Gas sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 1 |
| Dimension X [mm] | 10 |
| Dimension Y [mm] | 10 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 1.5 |
| Form factor | Module (general) WisBlock Sensor Module |
| General electrical properties | |
| Minimum supply voltage [V DC] | 1.7 |
| Maximum supply voltage [V DC] | 3.6 |
| Minimum IO-pin input voltage [V] | 1.7 |
| Maximum IO-pin input voltage [V] | 3.6 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x59 |
| Adjustable I2C address | No |
| Built-in pull-up resistor(s) [kΩ] | None |
| Gassensor | |
| Sensor (chip) | SGP40 |
| Measurable gasses | VOC |
| Output type | Exact |
| Minimum measuring range [ppm] | 0.3 |
| Maximum measuring range [ppm] | 30 |
| Minimum pre-heat time [s] | 60 |
| Connectors | |
| Power supply connector(s) | FBB04004 (WisBlock) 24p male |
| IO-connector(s) | FBB04004 (WisBlock) 24p male |
| Package contents | |
| Package contents | 1x RAK12047 WisBlock VOC Sensor- SGP40 |
