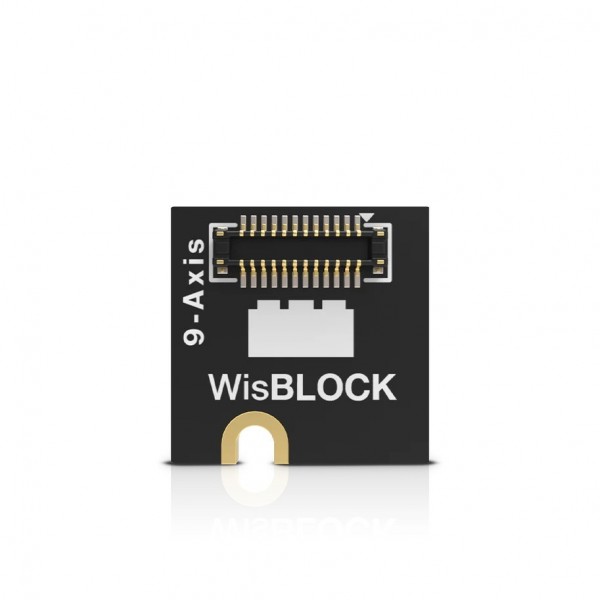

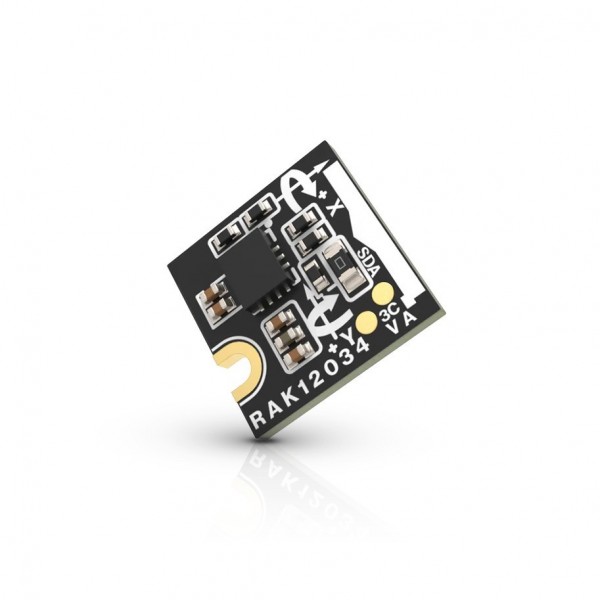

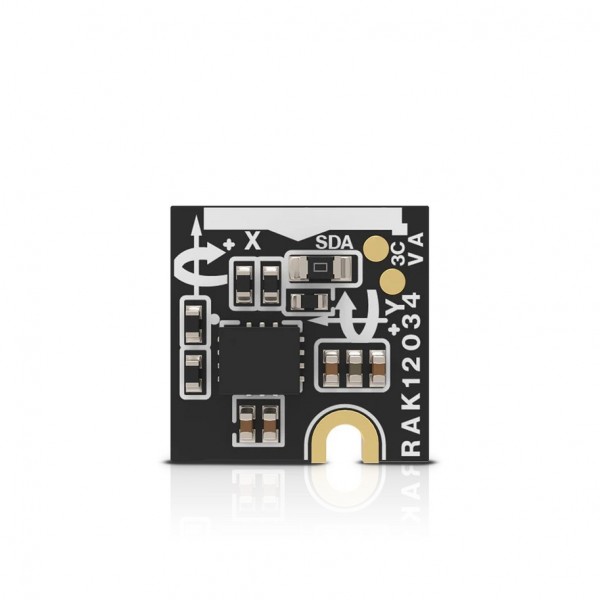

RAKwireless RAK12034 WisBlock 9-axis Accelerometer Module - BMX160 IMU

Based on 0 review(s) - Write a review

€13.00

Ex Tax: €10.74

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

A IMU module from RAKwireless for the modular WisBlock system.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: RAKwireless RAK12034 WisBlock 9-axis Accelerometer Module - BMX160 IMU , RAK-100094 , Sensor

General
Brand	RAKwireless
Manufacturer model/SKU	RAK12034/100094
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	105
Features	Acceleration sensor Magnetometer Gyroscope
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	10
Dimension Y [mm]	10
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock Sensor Module
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x69
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	None
Acceleration sensor
Sensor chip/SoC	BMX160
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	BMX160
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16
Magnetometer
Sensor (chip)	BMX160
Type	Compass
Degrees of freedom (DOF)	3
Minimum measuring range [mT]	0.0
Maximum measuring range [mT]	1.3 (x-axis, y-axis) 2.5 (z-axis)
Smallest resolution [mT]	0.0003
Connectors
Power supply connector(s)	FBB04004 (WisBlock) 24p male
IO-connector(s)	FBB04004 (WisBlock) 24p male
Package contents
Package contents	1x RAK12034 WisBlock 9-axis Accelerometer Module
