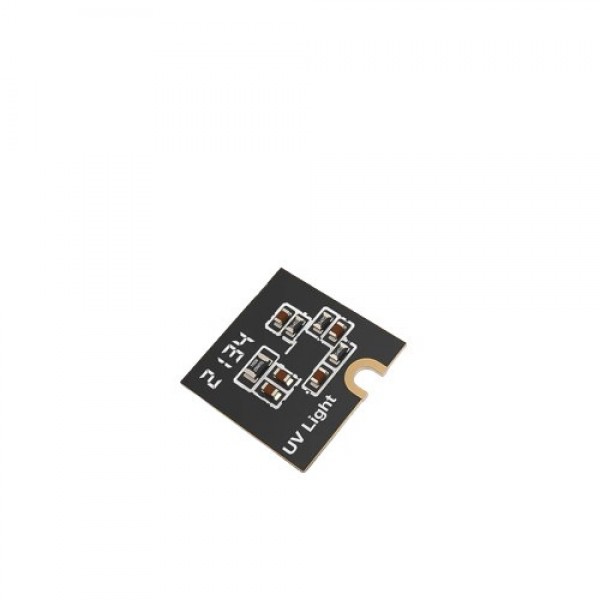

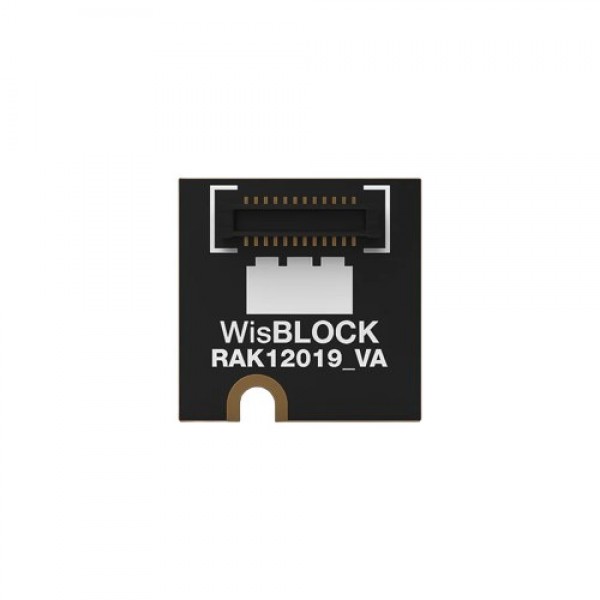

RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01

RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007540
Based on 0 review(s) - Write a review
€5.75
Ex Tax: €4.75
Add to Cart
Add to wishlist

A UV light sensor module from RAKwireless for the modular WisBlock system. This sensor can measure both ambient and UV light intensities.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01

This product has 0 review(s) in total.

Tags: Optical , Light and Color , RAKwireless RAK12019 WisBlock UV Light Sensor Module - LTR-390UV-01 , 007540 , RAKwireless , RAK12019/100057 , Light sensor , I2C

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK12019/100057
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Light sensor
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 10
Dimension Y [mm] 10
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor Module (general)
WisBlock Sensor Module
General electrical properties
Minimum supply voltage [V DC] 1.7
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 1.7
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x53
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] None
Light sensor
Sensor (chip) LTR-390UV-01
Measurable light UV
Visible
Light sensor type Light intensity
Peak wavelength(s) [nm] 310
540
Connectors
Power supply connector(s) FBB04004 (WisBlock) 24p male
IO-connector(s) FBB04004 (WisBlock) 24p male
Package contents
Package contents 1x Sensor module
