RAKwireless RAK12007 WisBlock Ultrasonic Sensor Module - CS100

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

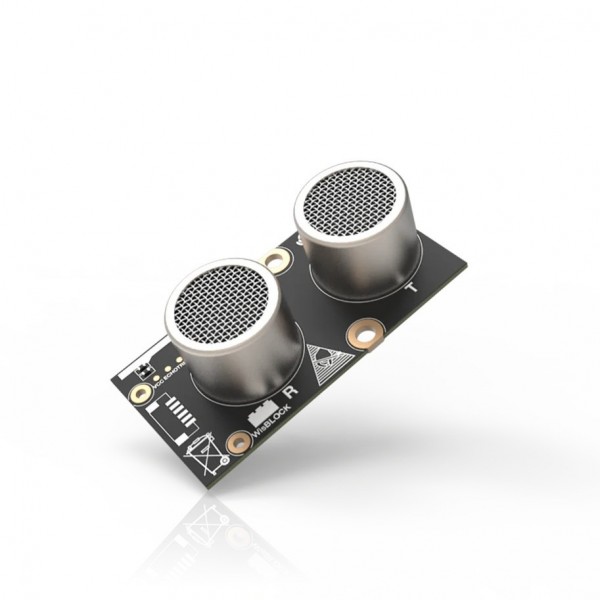

An ultrasonic sensor module from RAKwireless for the modular WisBlock system.

Please login or register to review

This product has 0 review(s) in total.

Tags: RAKwireless RAK12007 WisBlock Ultrasonic Sensor Module - CS100 , RAK-100042 , Sensor

General
Brand	RAKwireless
Manufacturer model/SKU	RAK12007/100042
Features	Object detection sensor
General physical appearance
Main color	Black
Weight [g]	7
Dimension X [mm]	48
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5 2.8
Form factor	Module (general) WisBlock IO Module
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
Object detection sensor
Sensor (chip)	CS100
Type	Ultrasonic
Detection type	Distance
Adjustable detection distance	No
Adjustable sensitivity	No
Minimum measuring range [cm]	2
Maximum measuring range [cm]	400
Accuracy [±mm]	3
Accuracy [%]	1
Connectors
Power supply connector(s)	FBB04004 (WisBlock) 40p male
IO-connector(s)	FBB04004 (WisBlock) 40p male
Package contents
Package contents	1x RAK12007 WisBlock Ultrasonic Sensor Module
