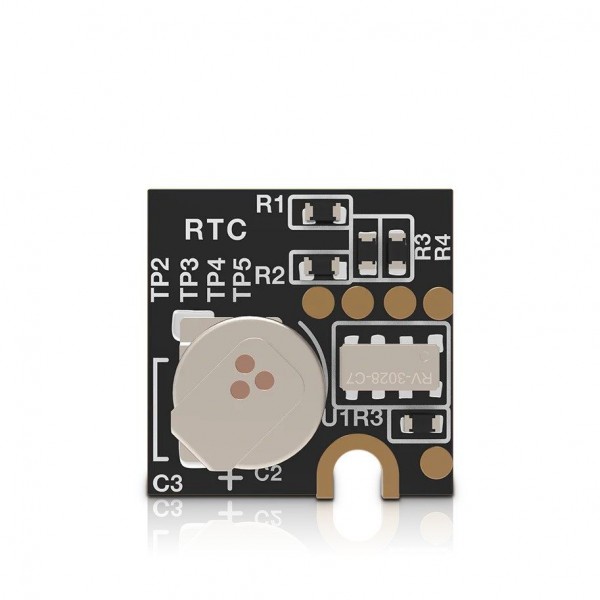

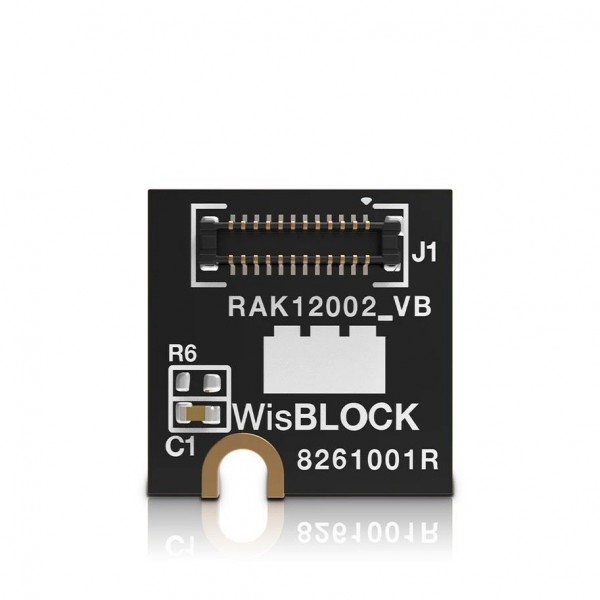

RAKwireless RAK12002 WisBlock RTC Module - RC-3028-C7
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006624
€12.50
Ex Tax: €10.33
Your shopping cart is empty!
A RTC module from RAKwireless for the modular WisBlock system.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | RAKwireless |
| Manufacturer model/SKU | RAK12002/100032 |
| Features | RTC |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 1 |
| Dimension X [mm] | 10 |
| Dimension Y [mm] | 10 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 1.5 |
| Form factor | Module (general) WisBlock Sensor Module |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 3.3 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x52 |
| Adjustable I2C address | No |
| Built-in pull-up resistor(s) [kΩ] | None |
| RTC | |
| RTC chip | RV-3028-C7 |
| Back-up battery/capacitor | Yes |
| Connectors | |
| Power supply connector(s) | FBB04004 (WisBlock) 24p male |
| IO-connector(s) | FBB04004 (WisBlock) 24p male |
| Package contents | |
| Package contents | 1x RAK12002 WisBlock RTC Module |
