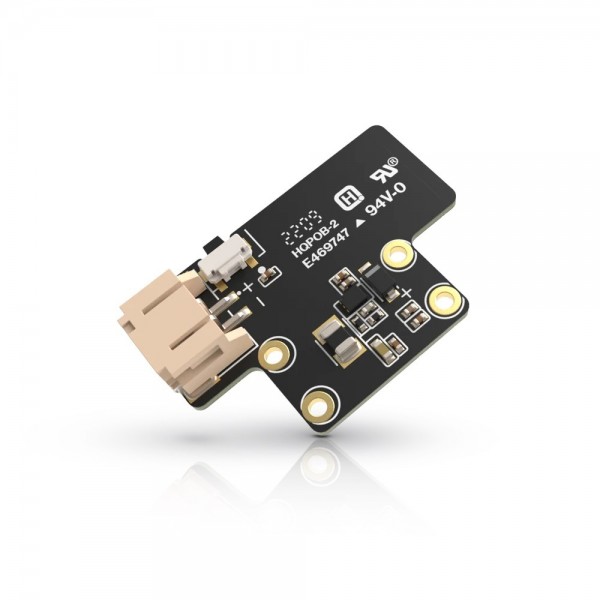

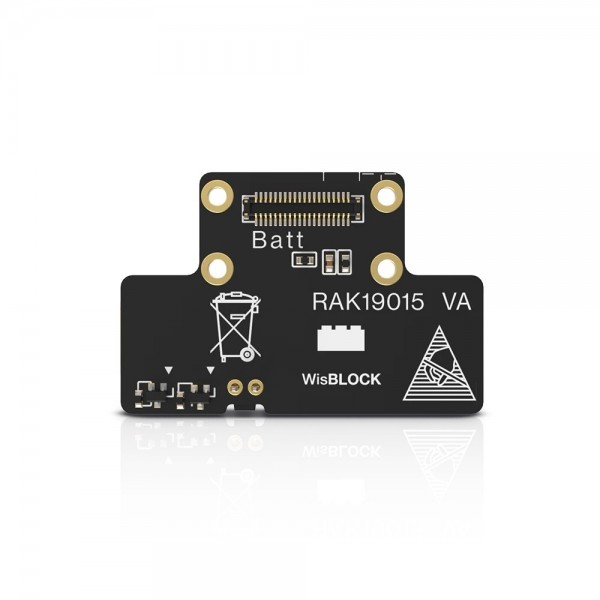

RAKwireless RAK19015 WisBlock Battery Power Slot Module

Based on 0 review(s) - Write a review

€6.25

Ex Tax: €5.17

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A battery adapter module from RAKwireless for the WisBlock system.

Note: This module does not contain a charging and/or protection circuit.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: RAKwireless RAK19015 WisBlock Battery Power Slot Module , RAK-100090 , Buck (Step-Down) Converters

General
Brand	RAKwireless
Manufacturer model/SKU	RAK19015/100090
Minimum operating temperature [°C]	-35
Maximum operating temperature [°C]	75
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	30
Dimension Y [mm]	20
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock Power Module
Voltage converter
Chip/SoC	SGM6036
Voltage converter type	Buck
Conversion	DC-DC
Isolated	No
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	1400
Minimum input voltage [V DC]	3.3
Maximum input voltage [V DC]	4.3
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	3.3
Maximum output current [A]	0.6
Maximum output power [W]	2
Safety features	Temperature
Battery circuit
Supported battery chemistry	Li-ion Li-Po
Protection circuit	No
Connectors
Battery connector(s)	JST-PH (compatible) male
Input voltage connector(s)	JST-PH (compatible) male (= battery connector)
Output voltage connector(s)	FBB04004 (WisBlock) 40p male
Package contents
Package contents	1x RAK19015 WisBlock Battery Power Slot Module
