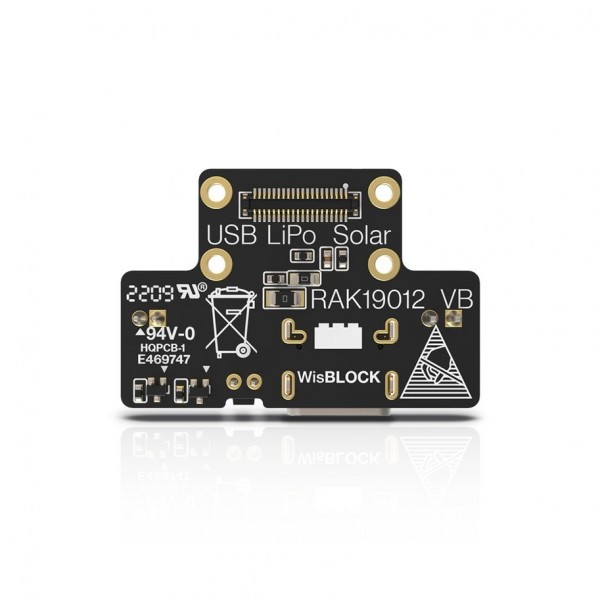

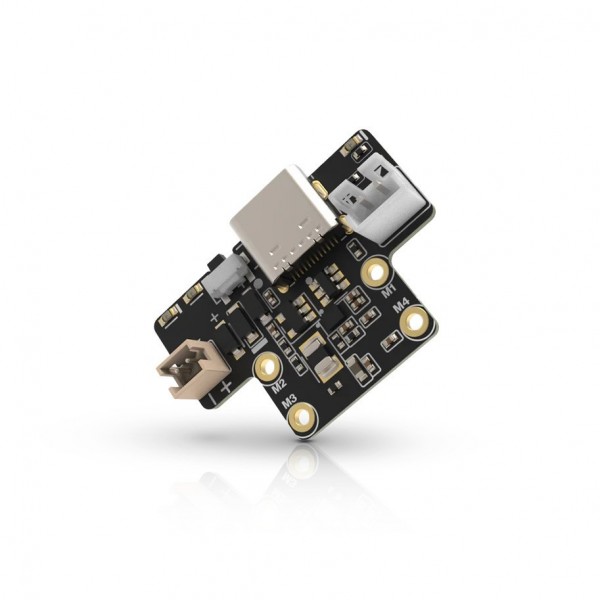

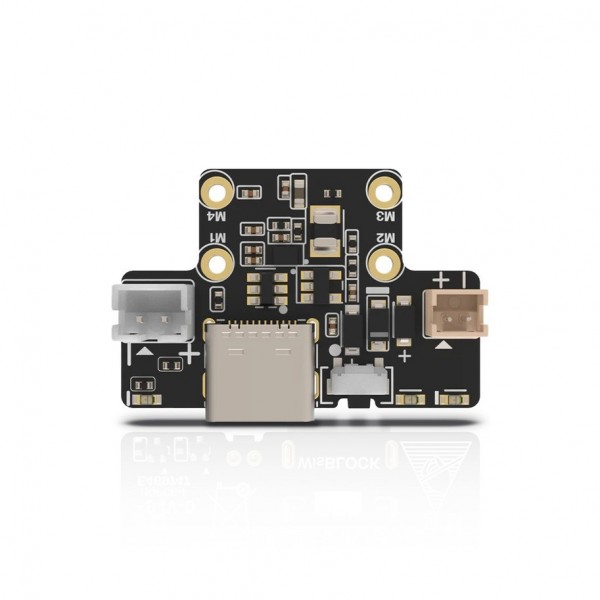

RAKwireless RAK19012 WisBlock USB LiPo Solar Power Slot Module

Availability: Directly available from warehouse in Eindhoven
SKU: 006598

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

A power module from RAKwireless for the modular WisBlock system. The module has a connector and charger for a Li-Po/Li-ion battery and a USB-C connector to program and/or power the WisBlock Core.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK19012 WisBlock USB LiPo Solar Power Slot Module

Average Rating:

This product has 0 review(s) in total.

Tags: RAKwireless RAK19012 WisBlock USB LiPo Solar Power Slot Module , RAK-110088 , Li-ion and Li-Po

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK19012/110088
Minimum operating temperature [°C]	-35
Maximum operating temperature [°C]	75
Features	Battery charger Voltage converter
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	30
Dimension Y [mm]	20
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock Power Module
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	5.5
Voltage converter
Chip/SoC	SGM6036
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	410
Minimum input voltage [V DC]	4.5
Maximum input voltage [V DC]	5.5
Minimum output voltage [V DC]	3.3
Maximum output voltage [V DC]	3.3
Maximum output current [A]	0.5
Maximum output power [W]	1.6
Safety features	Short circuit Overcurrent (output) Temperature Over voltage (output)
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female JST-ZH (compatible) male
IO-connector(s)	USB-C female FBB04004 (WisBlock) 40p male
Battery connector(s)	JST-PH (compatible) male
Input voltage connector(s)	USB-C female JST-ZH (compatible) male
Output voltage connector(s)	FBB04004 (WisBlock) 40p male
Solar panel connector(s)	JST-ZH (compatible) male
Package contents
Package contents	1x RAK19012 WisBlock USB LiPo Solar Power Slot Module 1x USB-A to USB-C cable
