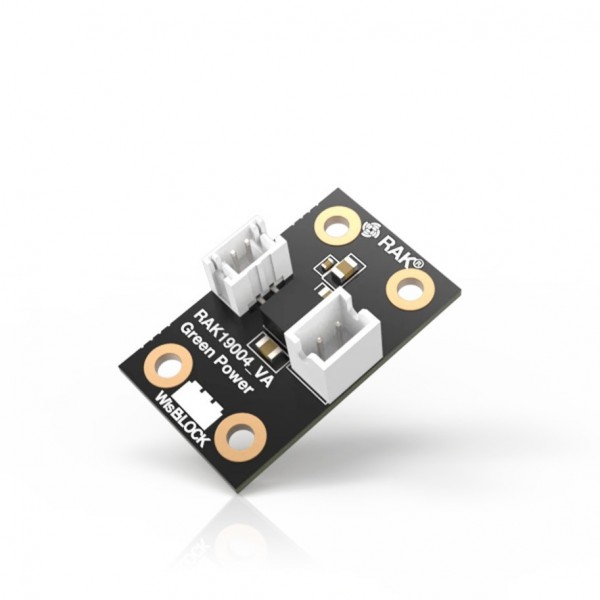

Name: RAKwireless RAK19004 WisBlock Green Power Module - Buck-Boost Converter - 1A - 5V - RAK-110049
SKU: 006612
Price: 10.5 EUR
Availability: InStock

RAKwireless RAK19004 WisBlock Green Power Module - Buck-Boost Converter - 1A - 5V

Availability: Directly available from warehouse in Eindhoven
SKU: 006612

Based on 0 review(s) - Write a review

€10.50

Ex Tax: €8.68

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A voltage converter module from RAKwireless.

Note: Unlike most other products from RAKwireless, this module does not have a WisBlock connector.

Note: To start the output, the module needs at least 5.3V on the input once. After that, a lower input voltage can be used.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over RAKwireless RAK19004 WisBlock Green Power Module - Buck-Boost Converter - 1A - 5V

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006612_tps55160-q1_datasheet.pdf

Tags: RAKwireless RAK19004 WisBlock Green Power Module - Buck-Boost Converter - 1A - 5V , RAK-110049 , Buck-Boost (Step-Up-Down) Converters

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK19004/110049
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	25
Dimension Y [mm]	15
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.2
Form factor	Module (general)
Voltage converter
Chip/SoC	TPS55165-Q1
Voltage converter type	Buck-boost
Conversion	DC-DC
Switching method	Synchronous
Isolated	No
Soft start	Yes
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	2000
Minimum input voltage [V DC]	2.0
Maximum input voltage [V DC]	36
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	1.0 (Vin > 5.3V) 0.8 (Vin > 3.8V) 0.4 (Vin > 2.3V) 0.2 (Vin > 2V)
Maximum output power [W]	5
Safety features	Under voltage (input) Overcurrent (output) Temperature Over voltage (output)
Undervoltage locktout (UVLO) [V]	1.8
Connectors
Input voltage connector(s)	JST-PH (compatible) male
Output voltage connector(s)	JST-ZH (compatible) male
Package contents
Package contents	1x RAK19004 WisBlock Green Power Module 1x JST-ZH 2p compatible connector cable
