RAKwireless RAK17000 WisBlock Motor Control Module - DRV8833

Availability: Directly available from warehouse in Eindhoven
SKU: 006617

Based on 0 review(s) - Write a review

€7.25

Ex Tax: €5.99

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

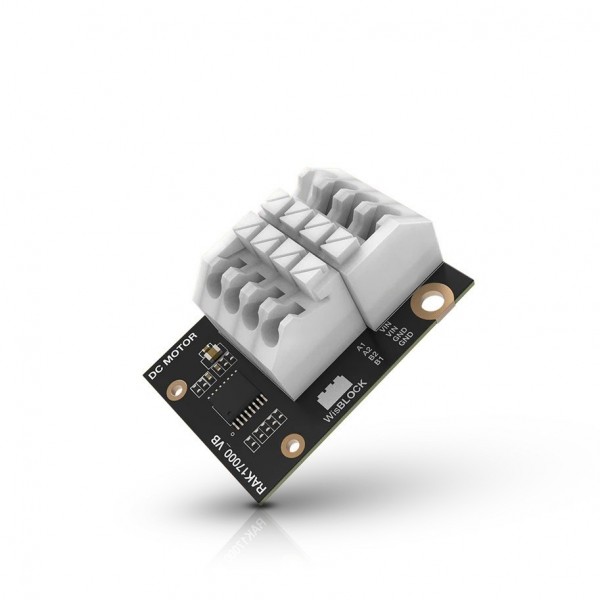

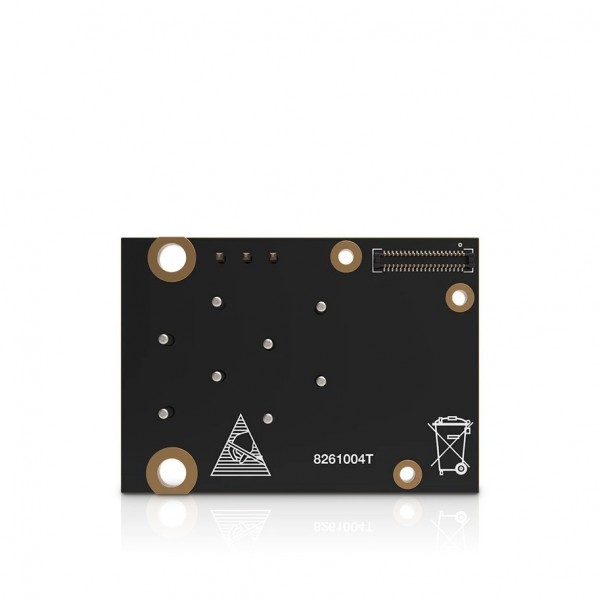

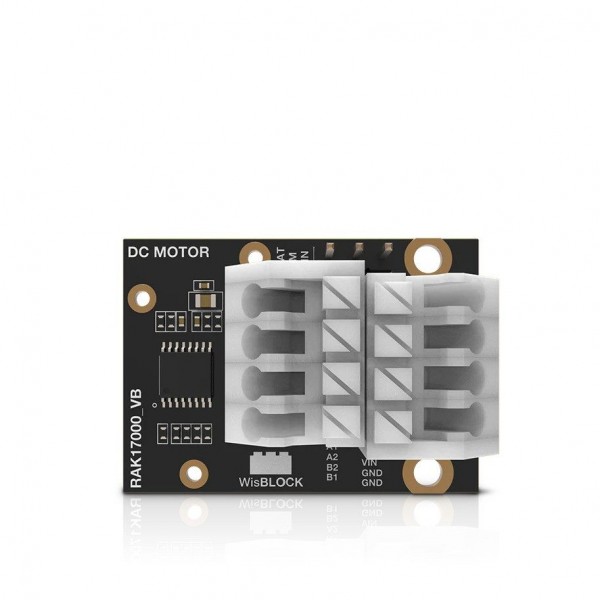

A DC motor driver module from RAKwireless for the modular WisBlock system. Theoretically, the driver can also be used for a single stepper motor, but we do not recommend this because the driver has no current limiter.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK17000 WisBlock Motor Control Module - DRV8833

Average Rating:

This product has 0 review(s) in total.

Tags: RAKwireless RAK17000 WisBlock Motor Control Module - DRV8833 , RAK-100037 , DC-Motor Controllers and Drivers

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK17000/100037
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	7
Dimension X [mm]	35
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5 2.8
Form factor	Module (general) WisBlock IO Module
General electrical properties
Minimum supply voltage [V DC]	2.7
Maximum supply voltage [V DC]	10.8
Minimum IO-pin input voltage [V]	2.5
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	Digital
Motor driver
Type	Driver
Driver chip	DRV8833
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	2
Minimum motor supply voltage [V DC]	2.7
Maximum motor supply voltage [V DC]	10.8
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	0.9
Maximum peak current per phase [A]	2
Current limiter	No
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	Clamp terminal
IO-connector(s)	FBB04004 (WisBlock) 40p male
Motor connector(s)	Clamp terminal
Package contents
Package contents	1x RAK17000 WisBlock Motor Control Module
