RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen

RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007533
Based on 0 review(s) - Write a review
€23.00
Ex Tax: €19.01
Add to Cart
Add to wishlist

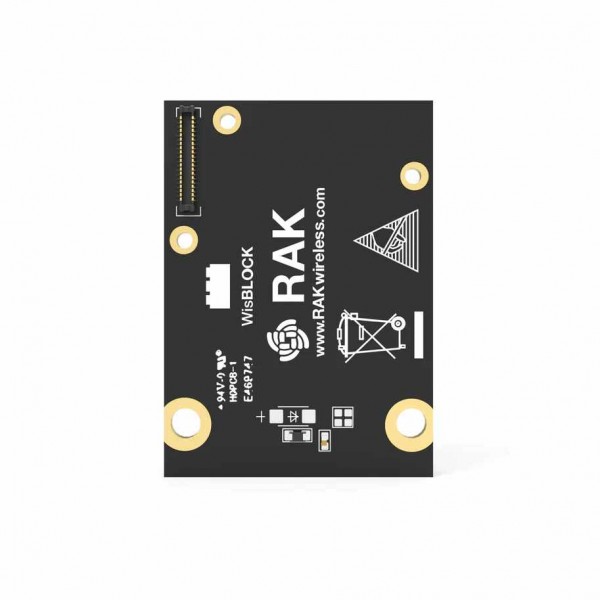

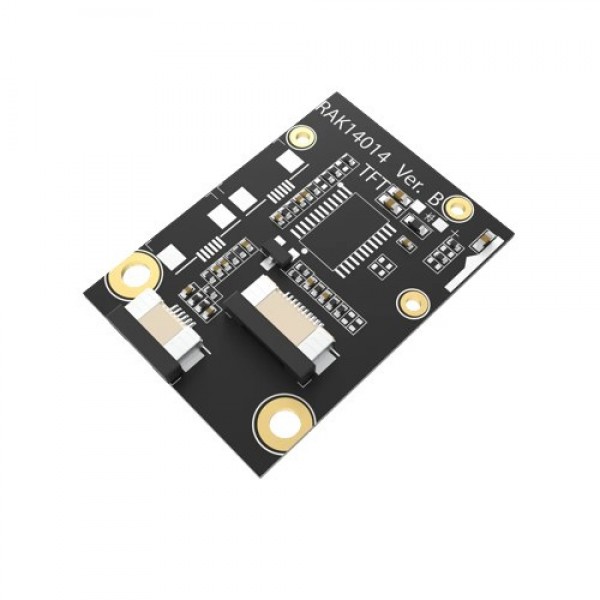

De RAK14014 is a display module from RAKwireless for the modular WisBlock platform. The module comes with an 2.4 inch IPS TFT LCD touchscreen display.

Next to the FPC connectors for the display and touchscreen, is is also possible to connect 6 push buttons to the remaining FPC connectors (buttons not included).

See the following page for more information: Wiki

Please login or register to review
Tags: RAKwireless , Display and LED , RAKwireless RAK14014 WisBlock TFT LCD Display Module - with 2.4 inch Display with Touchscreen , 007533 , RAKwireless , RAK14014/110191 , Display , Touchscreen , I2C , SPI , Digital

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK14014/110191
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 85
Features Display
Touchscreen
General physical appearance
Main color Black
Weight [g] 21
(display)
3
(module)
Dimension X [mm] 93
(display)
35
(module)
Dimension Y [mm] 68
(display)
25
(module)
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
2.8
Form factor Module (general)
WisBlock IO Module
General electrical properties
Minimum supply voltage [V DC] 2.4
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 1.7
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
SPI
Digital
Display
Type IPS
Driver ST7789
Screen diagonal [inch] 2.4
Number of pixels long side 320
Number of pixels short side 240
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller FT6336U
Touch type Capacitive
Multi-touch support Yes
Connectors
Power supply connector(s) FBB04004 (WisBlock) 40p male
(module)
IO-connector(s) FFC female 6p 0.50mm
FFC female 10p 0.50mm
FBB04004 (WisBlock) 40p male
(module)
Package contents
Package contents 1x RAK14014 adapter module
1x TFT-IPS Display
