RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White

RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White
RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White
RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White
RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White
RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007535
Based on 0 review(s) - Write a review
€20.00
Ex Tax: €16.53
Add to Cart
Add to wishlist

The RAK14000 as an E-ink display module from RAKwireless for the modular WisBlock platform. The module comes with an 2.13 inch E-ink display and a membrane keypad with 3 buttons.

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White

This product has 0 review(s) in total.

Tags: RAKwireless , Display and LED , RAKwireless RAK14000 2.3 inch E-Ink E-Paper Display Module - Black-White , 007535 , RAKwireless , RAK14000/110021 , Display , Manual switch , SPI , Digital

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK14000/110021
Features Display
Manual switch
General physical appearance
Main color Black
Weight [g] 3
(display)
2
(module)
1
(buttons)
Dimension X [mm] 60
(display)
25
(module)
49
(buttons)
Dimension Y [mm] 29
(display)
21
(module)
9.5
(buttons)
Mounting options Adhesive layer
Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor Module (general)
WisBlock IO Module
General electrical properties
Minimum supply voltage [V DC] 2.2
Maximum supply voltage [V DC] 3.7
Indication (deep-)sleep current [μA] 1
(deep-sleep mode)
20
(sleep mode)
Minimum IO-pin input voltage [V] 2.2
Maximum IO-pin input voltage [V] 3.7
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Digital
Display
Type E-paper
Driver SSD1680
Screen diagonal [inch] 2.13
Number of pixels long side 212
Number of pixels short side 104
Display shape Rectangular
Pixel colors Black
White
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 3
Connectors
Power supply connector(s) FBB04004 (WisBlock) 40p male
IO-connector(s) FFC female 6p 0.50mm
FFC female 24p 0.50mm
FBB04004 (WisBlock) 40p male
(module)
Package contents

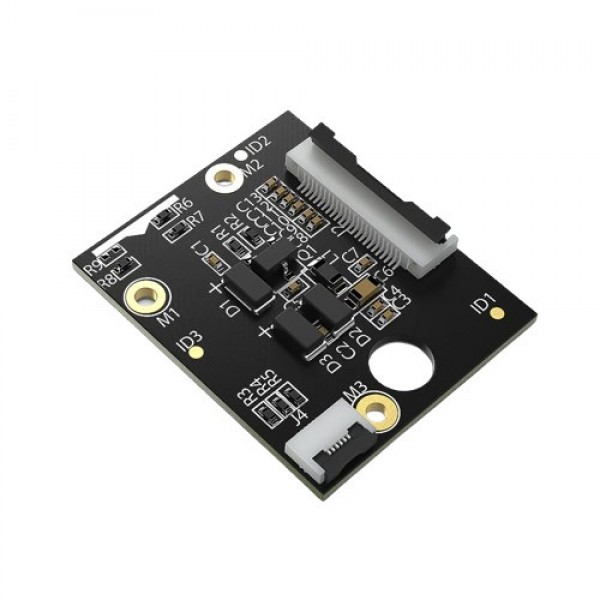

Package contents 1x RAK14000 adapter module
1x E-ink display
1x Three button keypad
