RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE

RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE
RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE
RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE
RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE
RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006587
Based on 0 review(s) - Write a review
€18.50
Ex Tax: €15.29
10 or more €18.25
20 or more €18.00
50 or more €17.75
100 or more €17.50
Add to Cart
Add to wishlist

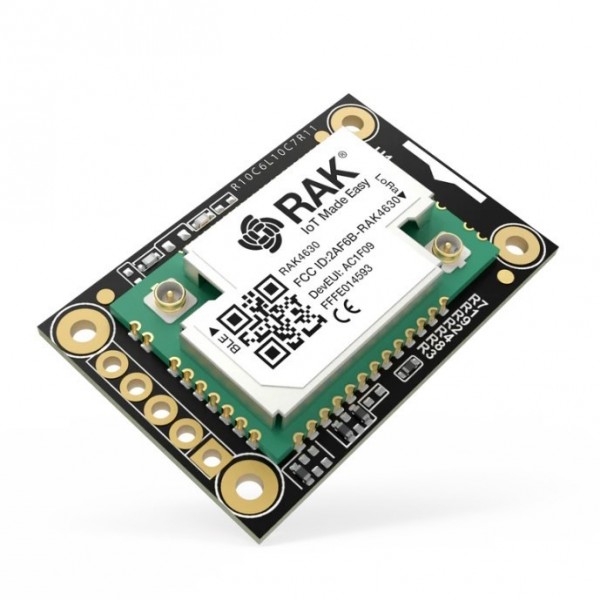

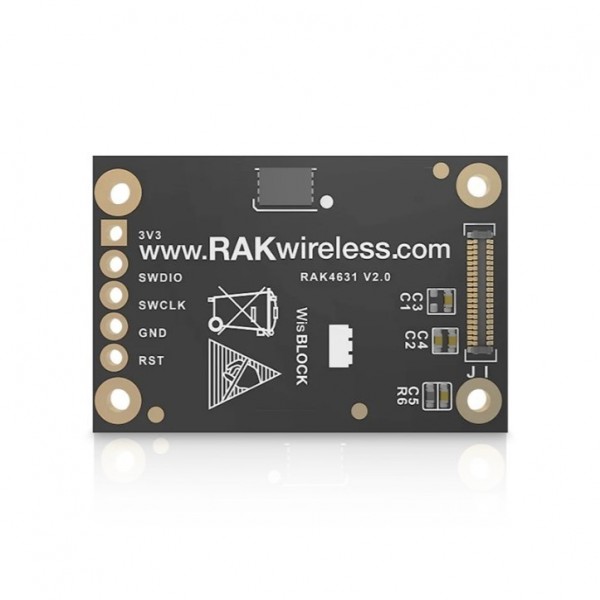

The RAK4631 is a module from RAKwireless for the modular WisBlock platform. This Core module is based on the nRF52840 and SX1262 chips. The module supports BLE 5.0 and LoRa.

See the following page for more information: Wiki

Please login or register to review
Tags: Microcontroller Boards , With LoRa , RAKwireless RAK4631 WisBlock Core LPWAN Module - nRF52840 - LoRa and BLE , 006587 , RAK4631/115000 , Microcontroller (MCU) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , USB CDC , Comparator , Bluetooth , LoRa

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK4631/115000
Model revision V2.0
Minimum operating temperature [°C] -45
Maximum operating temperature [°C] 85
Features Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 4
(excl. antennas)
Dimension X [mm] 30
Dimension Y [mm] 20
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor WisBlock Core
Module (general)
General electrical properties
Minimum supply voltage [V DC] 2
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 2
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Maximum IO-pin source current [mA] 14
Maximum IO-pin sink current [mA] 15
MCU
Manufacturer Nordic Semiconductor
Chip series nRF52840
Maximum clock frequency [MHz] 64
Number of cores 1
Internal memory
SRAM [KB] 256
Flash memory [MB] 1
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Comparator
Native USB
Number of IO-pins 23
Maximum available hardware PWM channels 4
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 4
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) LoRa
Bluetooth
Bluetooth chip/SoC nRF52840
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Classic
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
Connectors
Power supply connector(s) FBB04004 (WisBlock) 40p male
Through hole solder pin(s) (2.54mm)
IO-connector(s) FBB04004 (WisBlock) 40p male
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector IPEX MHF 1/uFL male
LoRa antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x RAK4631 WisBlock Core LPWAN module
1x BLE antenna
1x LoRa antenna
