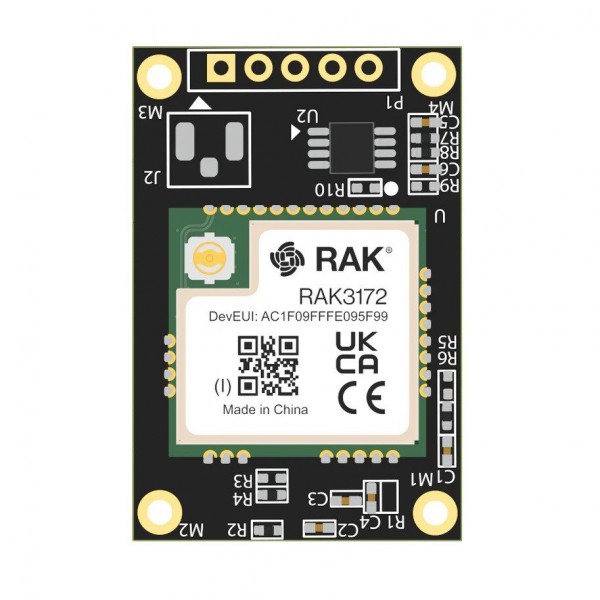

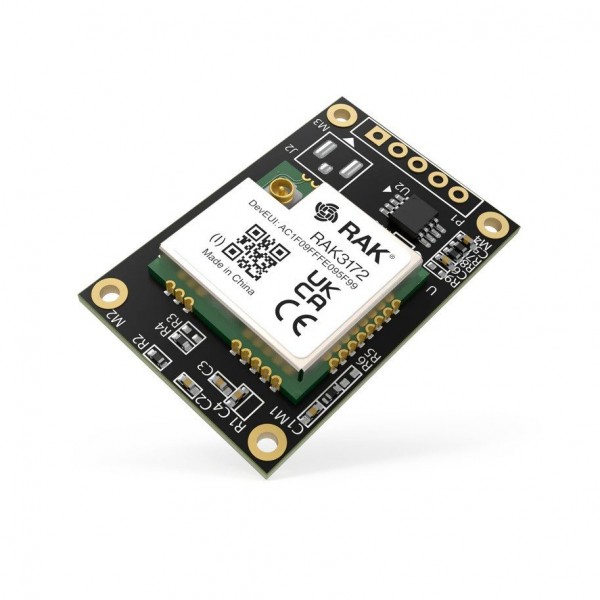

RAKwireless RAK3372 WisBlock STM32WLE5 Core Module for LoRaWAN

Availability: Directly available from warehouse in Eindhoven
SKU: 006591

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

The RAK13300 is a LoRa/LoRaWAN core module from RAKwireless for the modular WisBlock platform, based on the STM32WLE5CCU6.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK3372 WisBlock STM32WLE5 Core Module for LoRaWAN

Average Rating:

This product has 0 review(s) in total.

Tags: RAKwireless RAK3372 WisBlock STM32WLE5 Core Module for LoRaWAN , RAK-115012 , With LoRa

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK3372/115012
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	85
Features	Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	30
Dimension Y [mm]	20
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock Core
General electrical properties
Minimum supply voltage [V DC]	2
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	2
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	20
MCU
Manufacturer	STMicroelectronics
Chip series	STM32WLE5
Maximum clock frequency [MHz]	48
Number of cores	1
Internal memory
SRAM [KB]	64
Flash memory [MB]	0.256
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC Comparator LIN
Number of IO-pins	18
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	1
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	3
Maximum available hardware SPI interfaces	1
USB to serial converter	CH340E
Wireless communication
Interface(s)	LoRa
LoRa chip/SoC	STM32WLE5 (SX1262)
LoRa frequency [MHz]	868
Connectors
Power supply connector(s)	FBB04004 (WisBlock) 40p male
IO-connector(s)	FBB04004 (WisBlock) 40p male
LoRa antenna connector	IPEX MHF 1/uFL male
Package contents
Package contents	1x RAK3372 WisBlock STM32WLE5 Core Module 1x LoRa antenna
