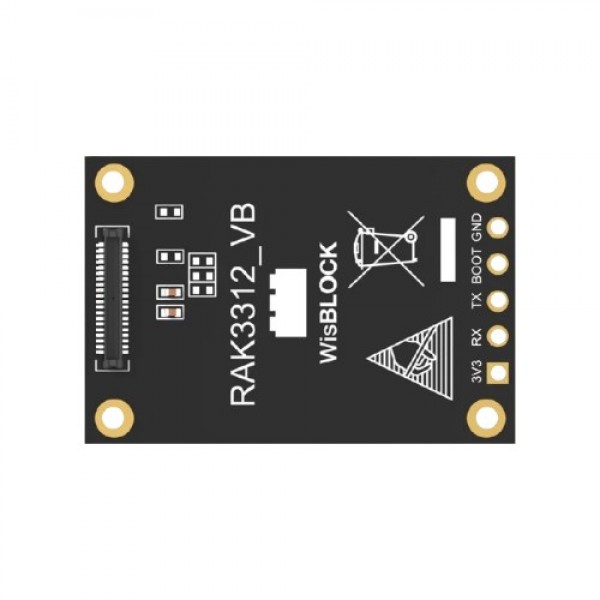

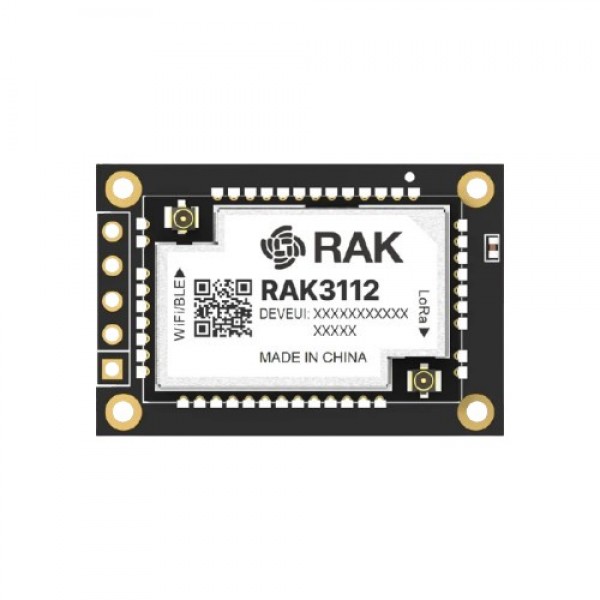

RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz

RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007518
Based on 0 review(s) - Write a review
€14.75
Ex Tax: €12.19
Add to Cart
Add to wishlist

The RAK3312 is a LoRa/LoRaWAN core module from RAKwireless for the modular WisBlock platform, based on the ESP32-S3.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With LoRa , RAKwireless RAK3312 WisBlock ESP32-S3 Core Module - SX1262 LoRa 868MHz , 007518 , RAKwireless , RAK3312/115233 , Microcontroller (MCU) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth , LoRa

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK3312/115233
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 65
Features Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 4
Dimension X [mm] 30
Dimension Y [mm] 20
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor WisBlock Core
Module (general)
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Native USB
Available GPIO pins 0, 1, 2, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 38, 39, 40, 41, 42, 43, 44, 45, 46
Number of IO-pins 23
Maximum available hardware PWM channels 20
Maximum available analog input pins (ADC) 12
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) LoRa
Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
Connectors
Power supply connector(s) FBB04004 (WisBlock) 40p male
Through hole solder pin(s) (2.54mm)
IO-connector(s) FBB04004 (WisBlock) 40p male
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector IPEX MHF 4 male
LoRa antenna connector IPEX MHF 4 male
Package contents
Package contents 1x RAK3312
1x Antenna for LoRa
1x Antenna for BLE/Wi-Fi
