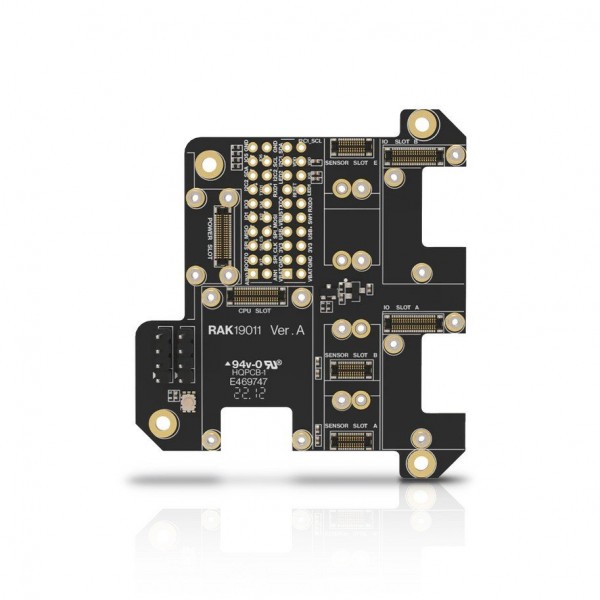

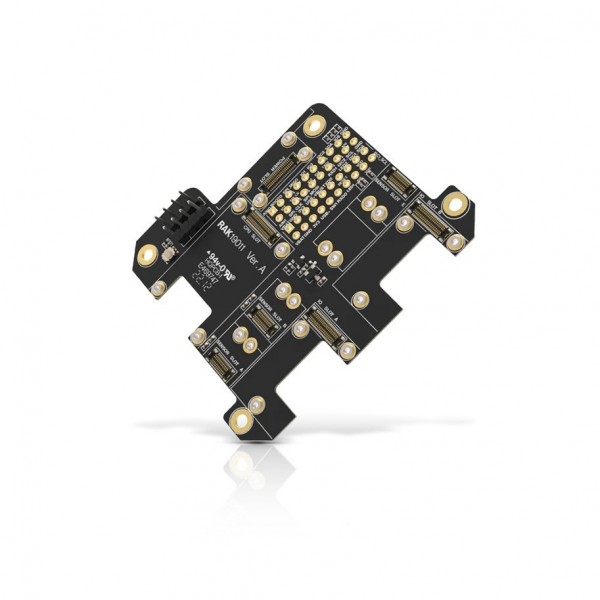

RAKwireless RAK19011 WisBlock Dual IO Base Board with Power Slot

Availability: Directly available from warehouse in Eindhoven
SKU: 006610

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A base module from RAKwireless for the modular WisBlock platform. This module connects a WisBlock Core, 2 IO slots and up to 6 WisBlock sensor modules. This version also has a power slot which makes the module flexible in terms of power supply options.

Note: The images show the module with some male headers, however these are not placed and are not included separately either.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK19011 WisBlock Dual IO Base Board with Power Slot

Average Rating:

This product has 0 review(s) in total.

Tags: RAKwireless RAK19011 WisBlock Dual IO Base Board with Power Slot , RAK-110087 , Adapter Boards

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK19011/110087
Model revision	C
Minimum operating temperature [°C]	-35
Maximum operating temperature [°C]	75
Features	Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	9
Dimension X [mm]	67
Dimension Y [mm]	60
Mounting options	Mounting hole(s) Screw thread
Diameter mounting hole(s) [mm]	2.7
Thread size	M1.2
Form factor	Module (general) WisBlock Base
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) FBB04004 (WisBlock) 40p female
IO-connector(s)	Through hole solder pin(s) (2.54mm) FBB04004 (WisBlock) 40p female FBB04004 (WisBlock) 24p female
Package contents
Package contents	1x RAK19011 WisBlock Dual IO Base Board with Power Slot 4x Bolt M2.5 22x Bolt M1.2
