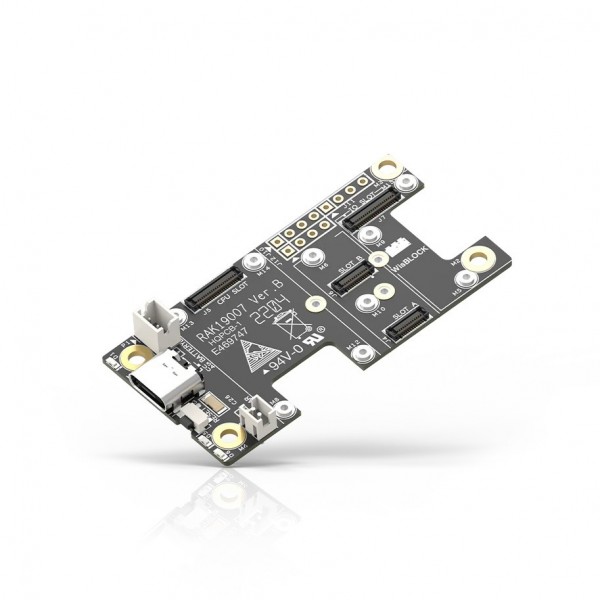

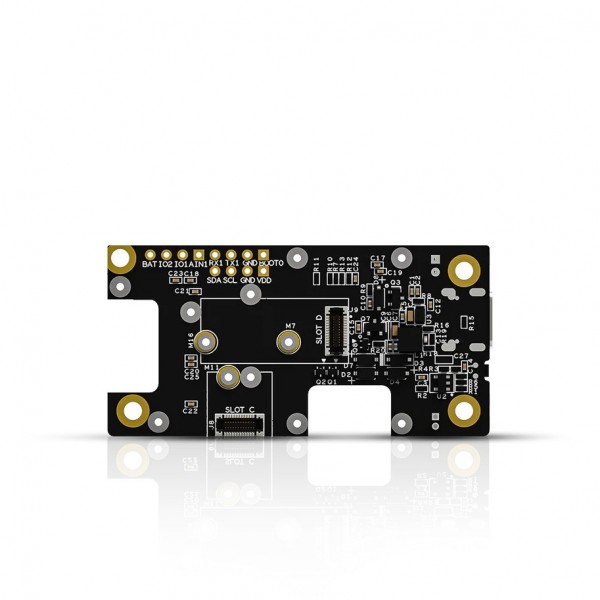

RAKwireless RAK19007 WisBlock Base Board 2nd Gen

RAKwireless RAK19007 WisBlock Base Board 2nd Gen
RAKwireless RAK19007 WisBlock Base Board 2nd Gen
RAKwireless RAK19007 WisBlock Base Board 2nd Gen
RAKwireless RAK19007 WisBlock Base Board 2nd Gen
RAKwireless RAK19007 WisBlock Base Board 2nd Gen
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006577
Based on 0 review(s) - Write a review
€12.75
Ex Tax: €10.54
10 or more €12.50
20 or more €12.25
50 or more €12.00
100 or more €11.75
Add to Cart
Add to wishlist

A base module from RAKwireless for the modular WisBlock platform.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK19007 WisBlock Base Board 2nd Gen

This product has 0 review(s) in total.

Tags: Accessories , Adapter Boards , RAKwireless RAK19007 WisBlock Base Board 2nd Gen , 006577 , RAKwireless , RAK19007/110082 , Battery charger

Specifications

General
Brand RAKwireless
Manufacturer model/SKU RAK19007/110082
Minimum operating temperature [°C] -35
Maximum operating temperature [°C] 75
Features Battery charger
General physical appearance
Main color Black
Weight [g] 6
Dimension X [mm] 60
Dimension Y [mm] 30
Mounting options Screw thread
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.7
Thread size M1.2
Form factor WisBlock Base
Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.5
Maximum supply voltage [V DC] 5.5
Battery circuit
Battery charger chip/SoC TP4054
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 350
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
FBB04004 (WisBlock) 24p female
FBB04004 (WisBlock) 40p female
Through hole solder pin(s) (2.54mm)
Battery connector(s) JST-PH (compatible) male
Solar panel connector(s) JST-ZH (compatible) male
Package contents
Package contents 1x WisBlock Base Board
1x USB-A to USB-C cable
4x Bolt M2.5
12x Bolt M1.2
