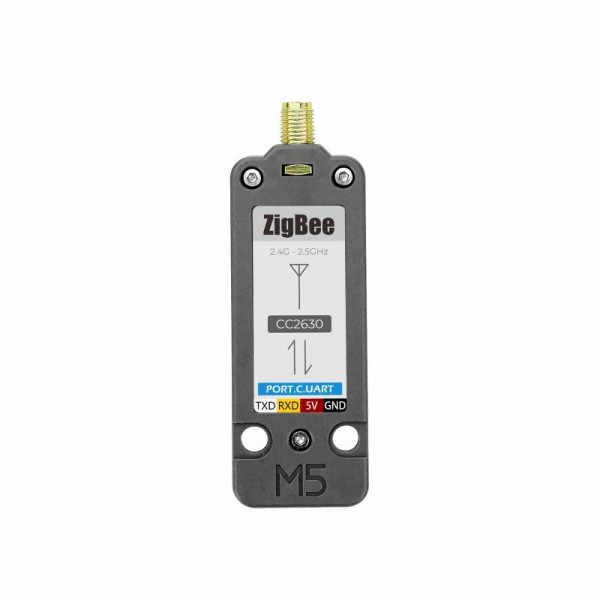

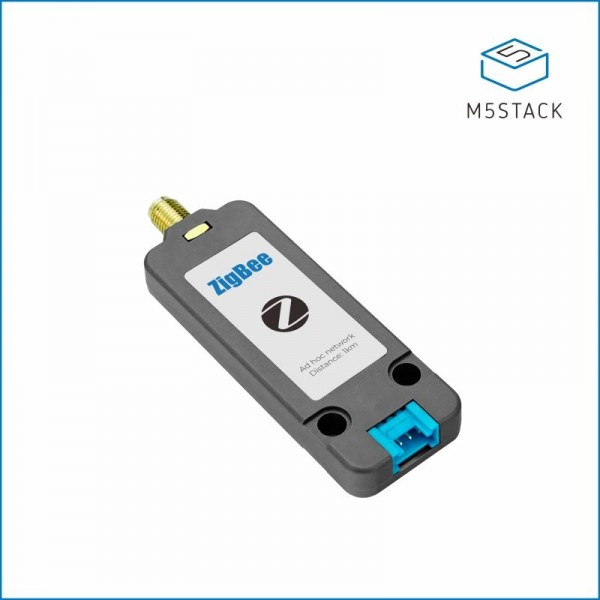

M5Stack ZigBee Unit - CC2630F128

With this M5Stack ZigBee unit it is possible to communicate with other ZigBee devices. This unit comes with a Grove cable which makes it easy to connect to other M5Stack products.

Specifications:

• Supply voltage: 5V DC
• Signal voltage: 3.3V
• ZigBee transceiver:
  • Chip: CC2630F128
  • Frequency: 2.4GHz
  • Maximum communication distance: 1km (ideal conditions)
  • Maximum transfer rate: 250Kbps
  • Communication: UART (RX/TX)
  • Baudrate: 38400
  • Antenna: SMA
• 2x LEGO^® compatible holes
• Connector: Grove
• Dimensions: 71.5 x 24 x 8mm (without antenna)

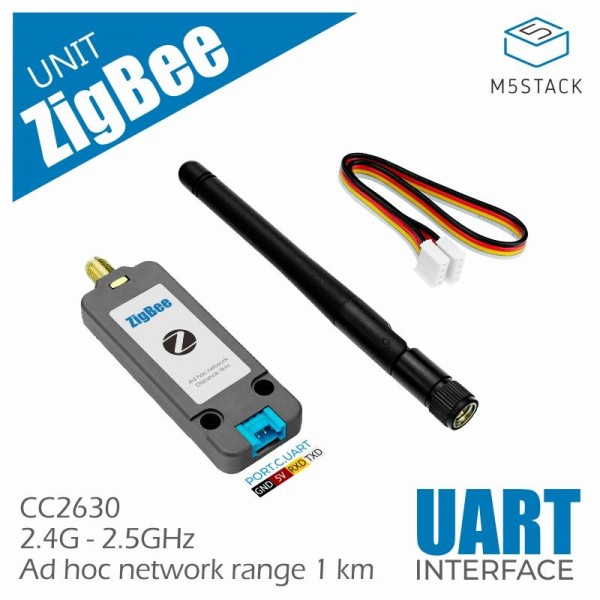

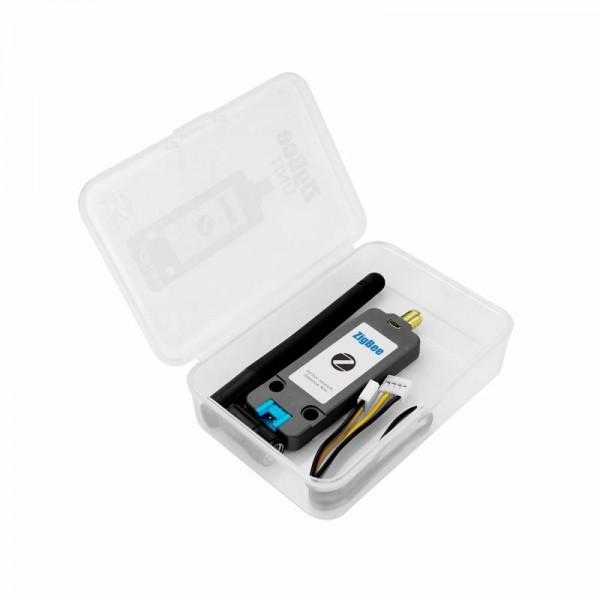

Package contents:

• 1x M5Stack ZigBee Unit
• 1x Grove cable (~20cm)
• 1x SMA antenna

See the following page for more information: M5Stack ZigBee Unit.
