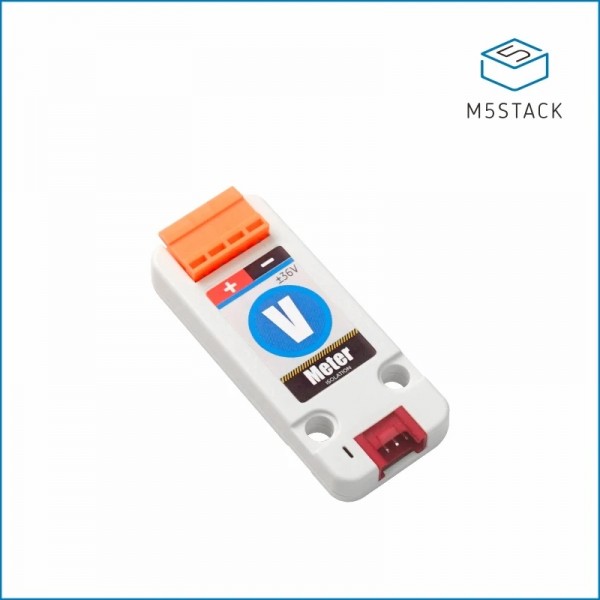

M5Stack VMeter Unit - Isolated Voltage Sensor

This is an isolated voltage sensor module with a Grove connection for M5Stack. The module contains a 16-bit ADC (analog to digital) converter, the ADS1115. The sensor is factory calibrated with the calibration data stored in the built-in EEPROM. The module works via I2C communication.

Specifications:

• Sensor: ADS1115
  • Resolution: 16-bit
• Measuring range: ±36V
• Communication: I2C

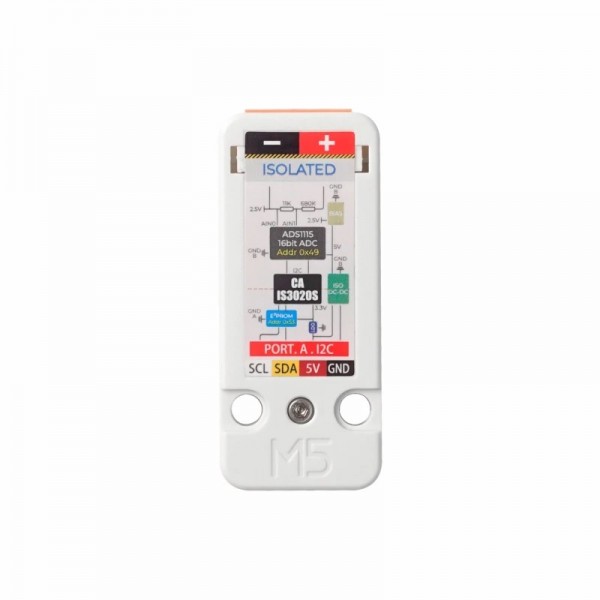

• I2C address:
  • ADS1115: 0x49
  • EEPROM: 0x53*
• LED power indicator
• 2x LEGO^® Compatible Mounting Holes

*Note: The EEPROM contains calibration data for the voltage sensor, do not write data to the EEPROM but only read it out, otherwise this data will be overwritten.

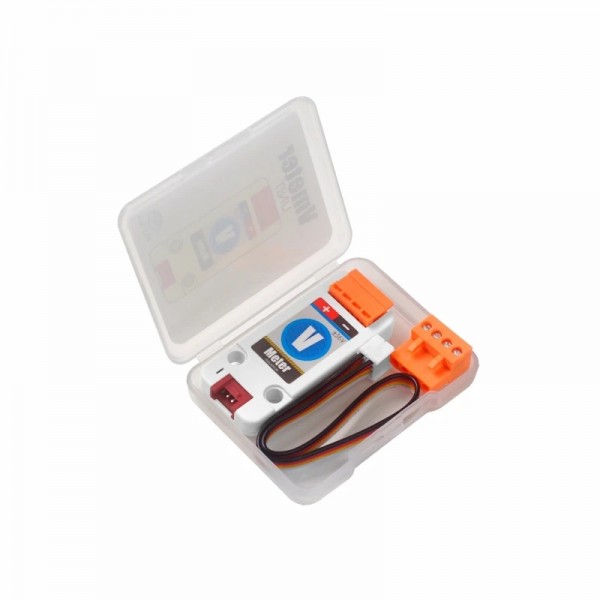

Package contents:

• 1x M5Stack VMeter Unit
• 1x Grove cable (20cm)

See the following page for more information: M5Stack Voltmeter Unit
