M5Stack Unit ChainBUS

M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
M5Stack Unit ChainBUS
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007678
€6.75
Ex Tax: €5.58

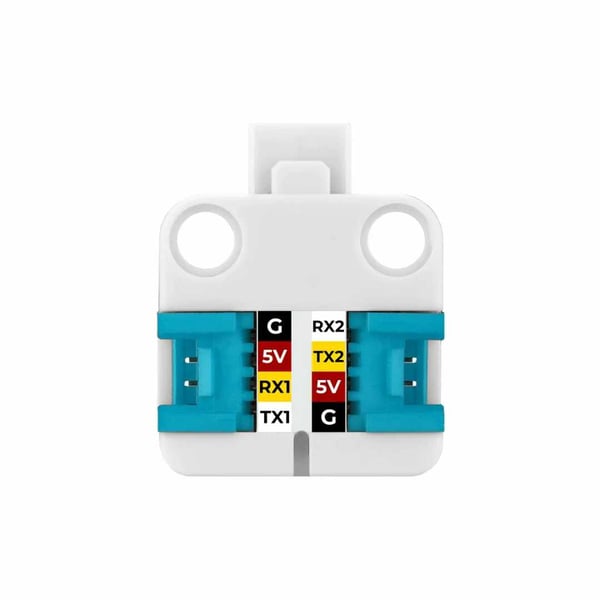

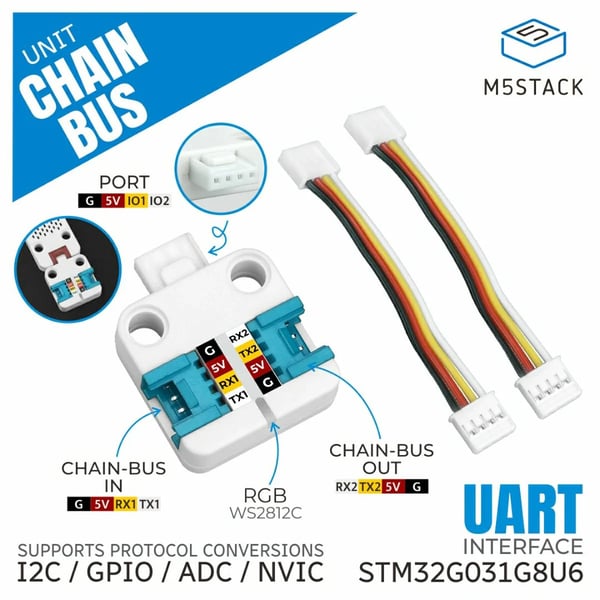

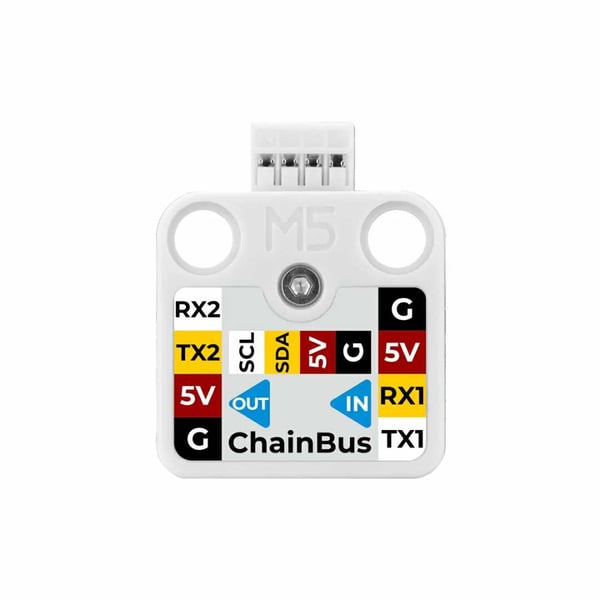

The M5Stack Unit ChainBus module enables daisy-chain control of multiple devices via UART.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Unit ChainBUS

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U212
Features Enclosure
Digital LED(s)
General physical appearance
Main color White
Weight [g] 4
Dimension X [mm] 24
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Light source
Type LED
LED (driver) chip WS2812C
Light color RGB
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
HY2.0 (Grove) female
Enclosure
Material Plastic (unknown material)

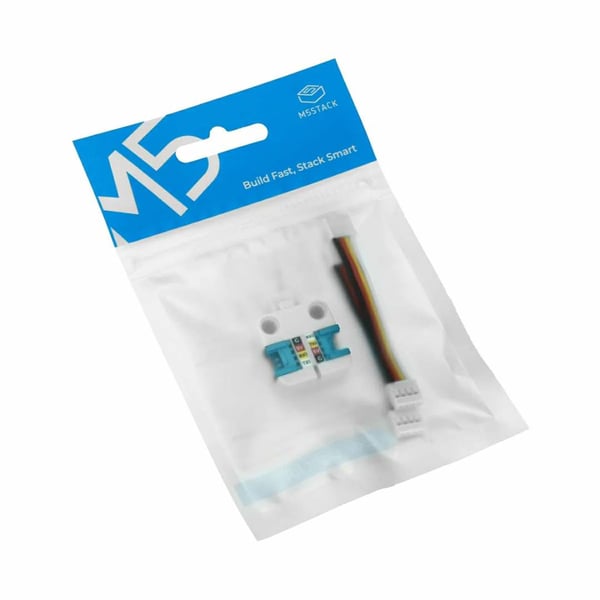

Package contents
Package contents 1x Unit ChainBus
2x Grove female cable
