M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X

M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005746
Based on 0 review(s) - Write a review
€10.75
Ex Tax: €8.88
10 or more €10.50
20 or more €10.25
50 or more €10.00
100 or more €9.75
Add to Cart
Add to wishlist

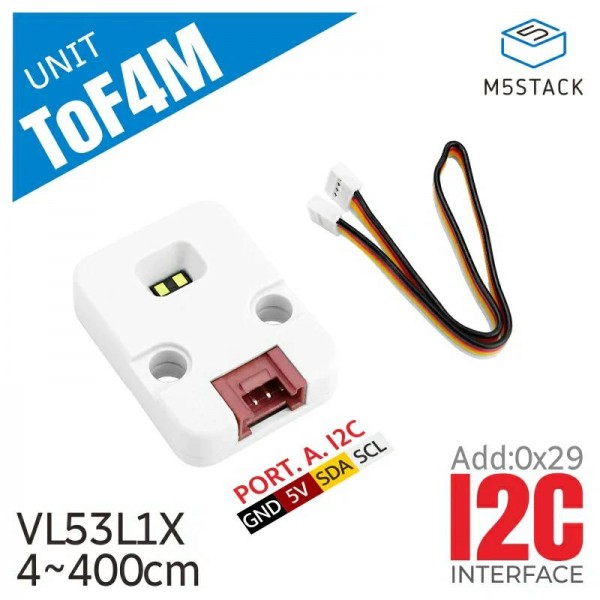

A Time-of-Flight distance sensor module from M5Stack. This sensor uses a laser to measure distances.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack ToF4M Unit - Time-of-Flight Distance Sensor - VL53L1X , 005746 , M5Stack , U172 , Enclosure , Object detection sensor , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU U172
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Object detection sensor
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x29
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 4.7
Object detection sensor
Sensor (chip) VL53L1X
Type ToF
Detection type Distance
Adjustable sensitivity Yes
Minimum measuring range [cm] 4
Maximum measuring range [cm] 400
Smallest resolution [mm] 1
Accuracy [±mm] 20
Accuracy [%] 1
Maximum detection angle [°] 27
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Polycarbonate (PC)

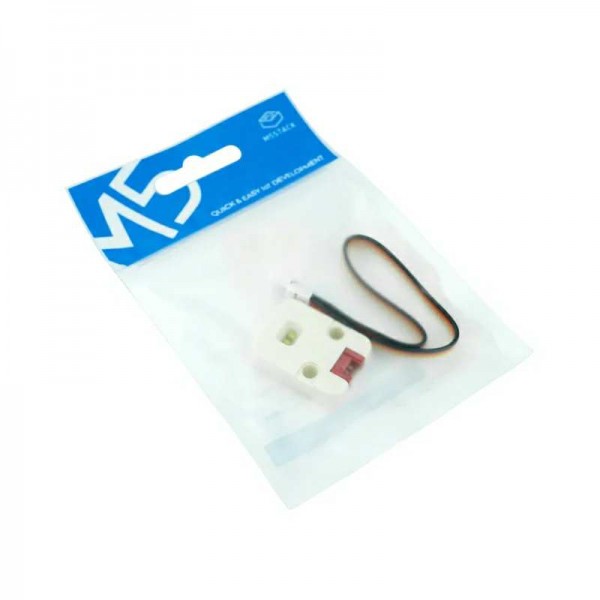

Package contents
Package contents 1x ToF4M Unit
1x Grove cable 20cm
