Name: M5Stack PaHub Unit V2.1 - 1 naar 6 I2C Multiplexer - with DIP Switch - M5STACK-U040-B-V21
Brand: M5Stack
SKU: 006769
Price: 7.25 EUR
Availability: InStock

M5Stack PaHub Unit V2.1 - 1 naar 6 I2C Multiplexer - with DIP Switch

Availability: Directly available from warehouse in Eindhoven
SKU: 006769

Based on 0 review(s) - Write a review

€7.25

Ex Tax: €5.99

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

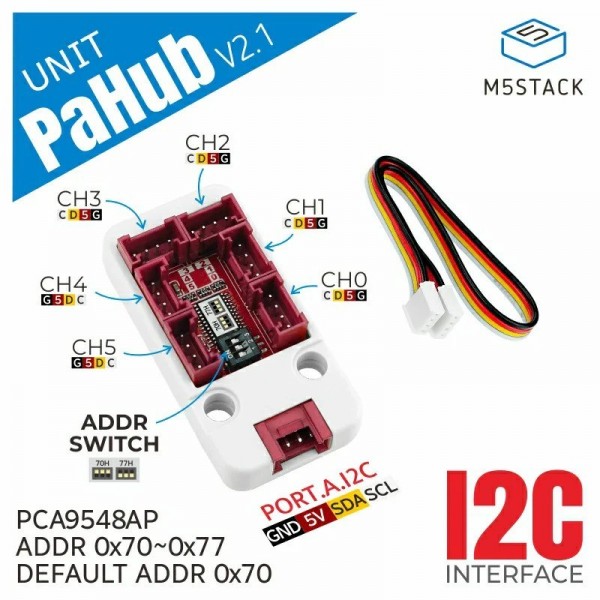

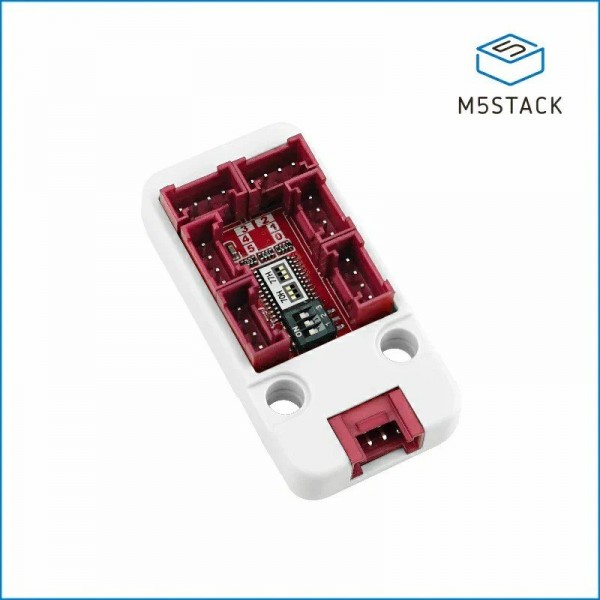

A multiplexer unit from M5Stack that allows you to convert one I2C channel into six channels.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack PaHub Unit V2.1 - 1 naar 6 I2C Multiplexer - with DIP Switch

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack PaHub Unit V2.1 - 1 naar 6 I2C Multiplexer - with DIP Switch , M5STACK-U040-B-V21 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U040-B-V21
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Enclosure
General physical appearance
Main color	White
Weight [g]	8
Dimension X [mm]	48
Dimension Y [mm]	24
Dimension Z [mm]	12
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
(GP)IO expansion chip	PCA9548A
Maximum available hardware I2C interfaces	6
Default I2C address	0x70
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	10
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x PaHub Unit V2.1 1x Grove female cable
