Name: M5Stack NCIR 2 Unit - IR Temperature sensor - M5Stack-U150
Brand: M5Stack
SKU: 004728
Price: 21.25 EUR
Availability: InStock

M5Stack NCIR 2 Unit - IR Temperature sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 004728

Based on 0 review(s) - Write a review

€21.25

Ex Tax: €17.56

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

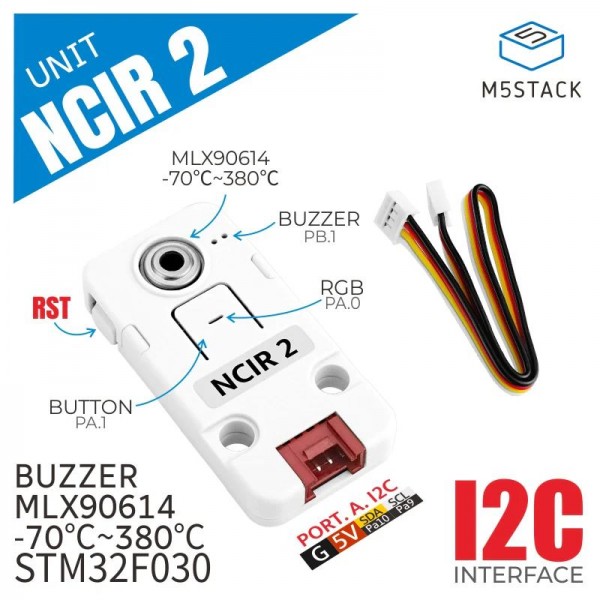

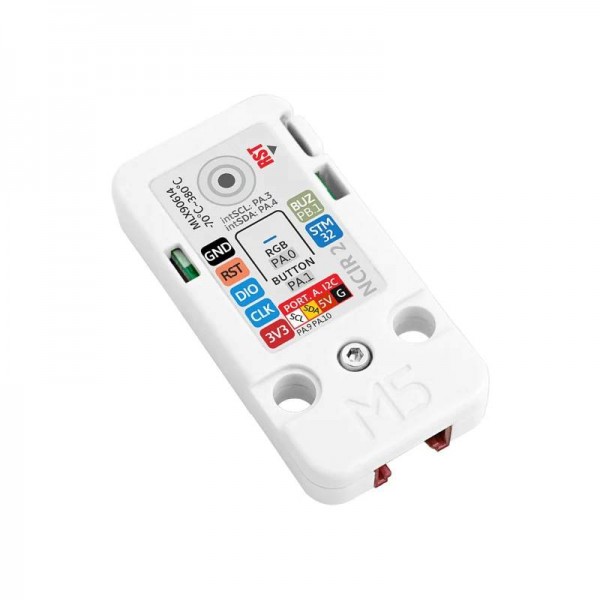

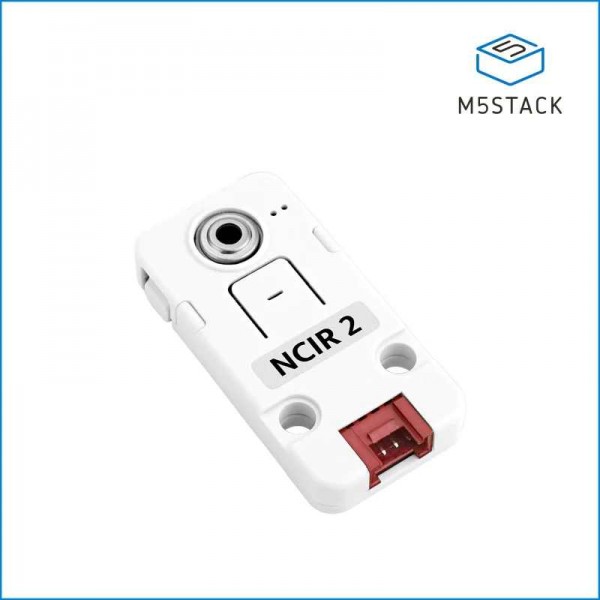

The NCIR 2 Unit is a temperature sensor module from M5Stack. This module has a built-in MLX90614 infrared sensor (IR) that is able to measure the temperature of various objects, including the human body.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack NCIR 2 Unit - IR Temperature sensor

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack NCIR 2 Unit - IR Temperature sensor , M5Stack-U150 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U150
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Temperature sensor
General physical appearance
Main color	White
Weight [g]	8
Dimension X [mm]	48
Dimension Y [mm]	24
Dimension Z [mm]	9
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x5A
Adjustable I2C address	No
Temperature sensor
Sensor (chip)	MLX90614-BAA
Minimum measuring range [°C]	-70
Maximum measuring range [°C]	380
Smallest resolution [°C]	0.02
Accuracy [±°C]	0.5
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Package contents
Package contents	1x NCIR 2 Unit 1x Grove female cable
