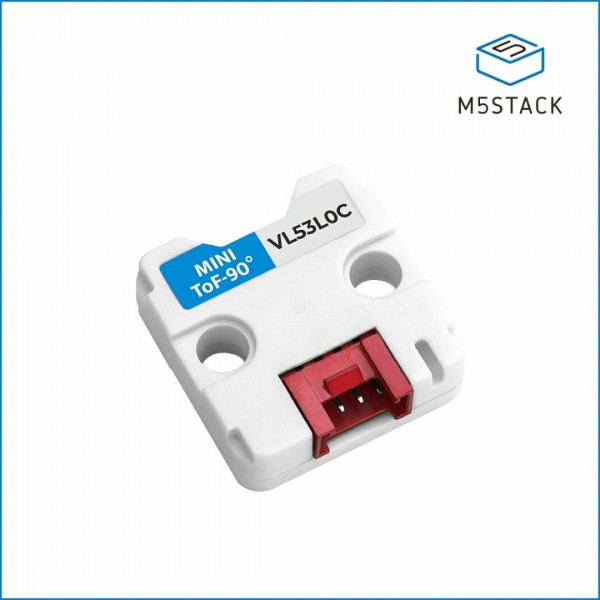

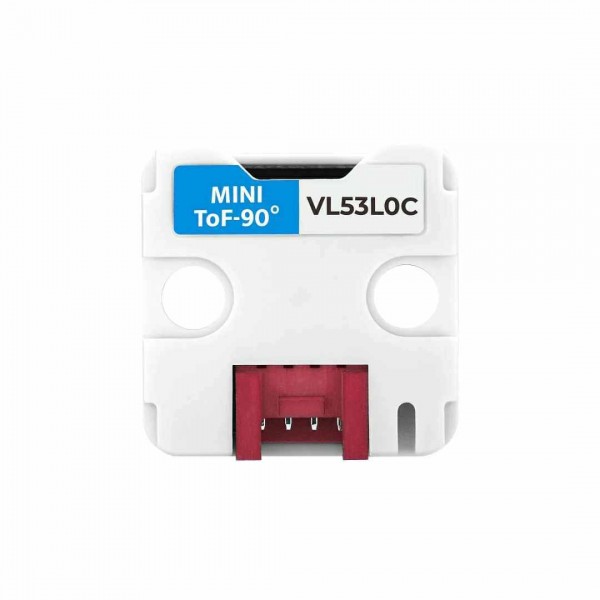

M5Stack Mini ToF-90° Unit - Time-of-Flight Distance Sensor - VL53L0X
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007259
€7.50
Ex Tax: €6.20
Your shopping cart is empty!
A compact Time-of-Flight distance sensor module from M5Stack.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U196 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Enclosure Object detection sensor |
| General physical appearance | |
| Main color | White |
| Weight [g] | 4 |
| Dimension X [mm] | 24 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 8 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Unit Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | Equal to I2C bus voltage |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x29 |
| Adjustable I2C address | Yes |
| Built-in pull-up resistor(s) [kΩ] | 4.7 |
| Object detection sensor | |
| Sensor (chip) | VL53L0X |
| Type | ToF |
| Detection type | Distance |
| Minimum measuring range [cm] | 3 |
| Maximum measuring range [cm] | 200 |
| Smallest resolution [mm] | 1 |
| Accuracy [%] | 3 |
| Maximum detection angle [°] | 25 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x Grove female cable 1x Mini ToF-90° unit |
